- Site：Home > Leather and Footwear Testing Instruments > SL-L45 Leather Testing Equipment Leather Cracking Tester
- Product Images
- detailed description

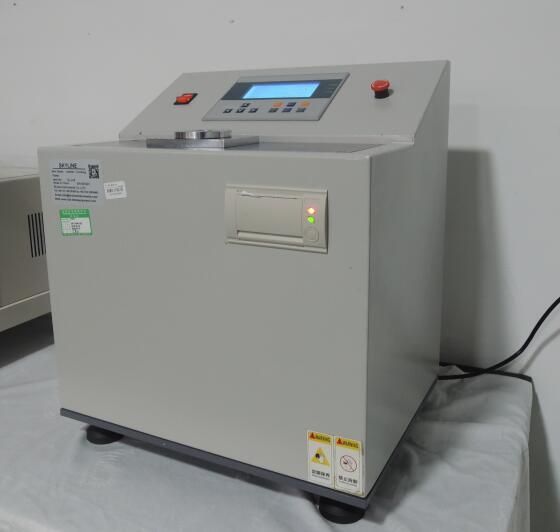

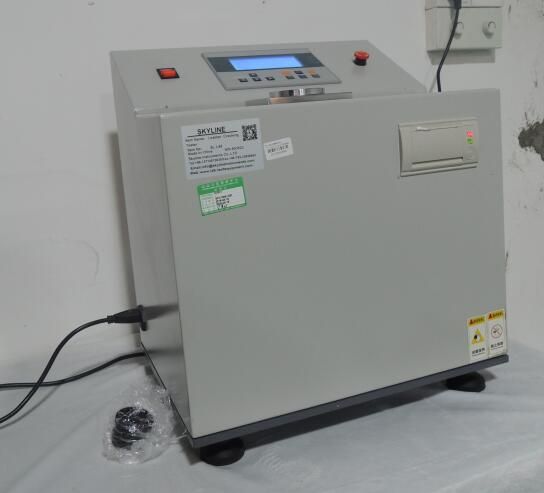

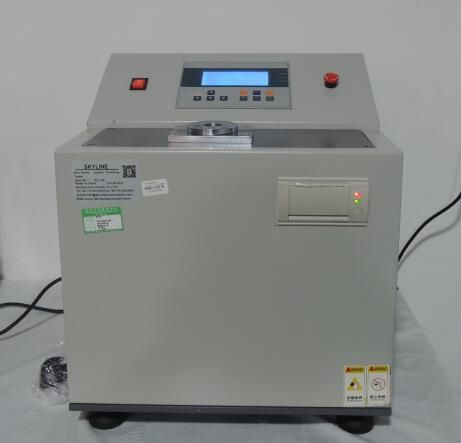

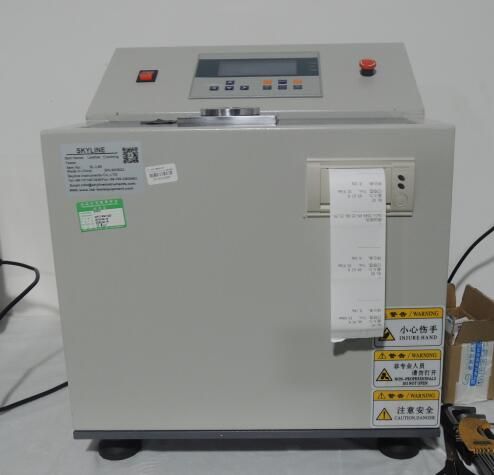

Leather Testing Equipment Leather Cracking Tester
Use
This instrument is used to test the anti-crack index of the upper, various thin leather and leather surface.
Principle

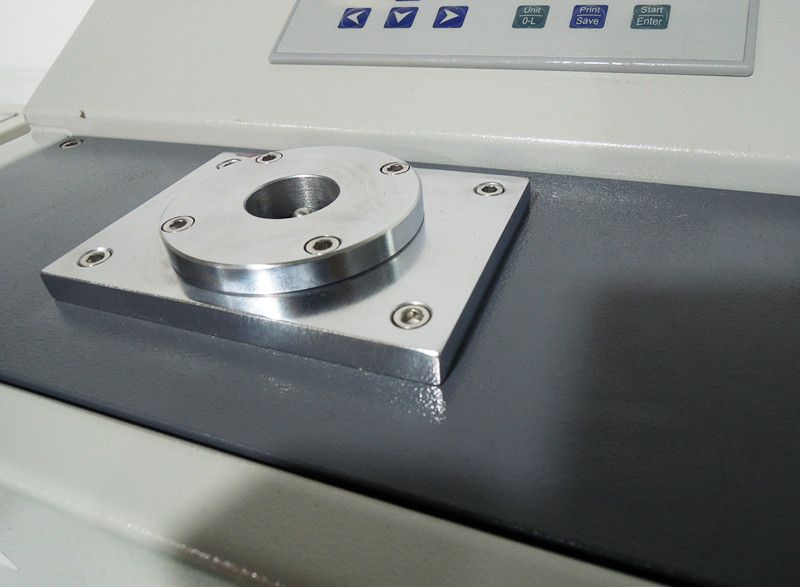

The instrument pushes the steel ball up from the inner side of the leather at a speed of 12 +/- 2 mm/min. When the leather surface is cracked, the height of the rise is the crack value.
Standard
DIN53325, ISO3379,SATRA TM24
Technical Parameters

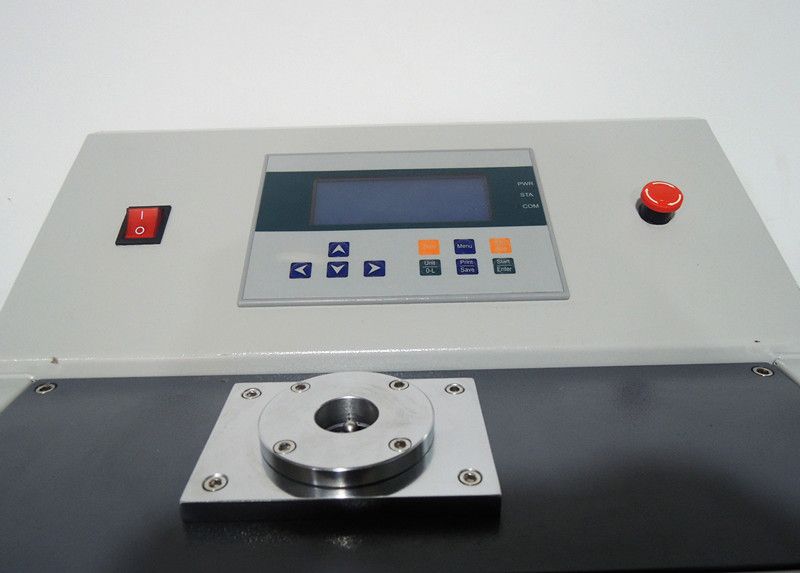

Control System LCD display Unit switching Kg, N, LBS Diameter after sample fixation Φ25mm Steel ball diameter Φ6.35mm Force range 0~1000N Force accuracy ±1% Volume 44*33*48 Weight 45kg Power supply 1∮ AC 220V 2.5A or specified by country Please review video of the Leather Cracking Tester operation as below link:
https://youtu.be/h-xz1cHB4IM
