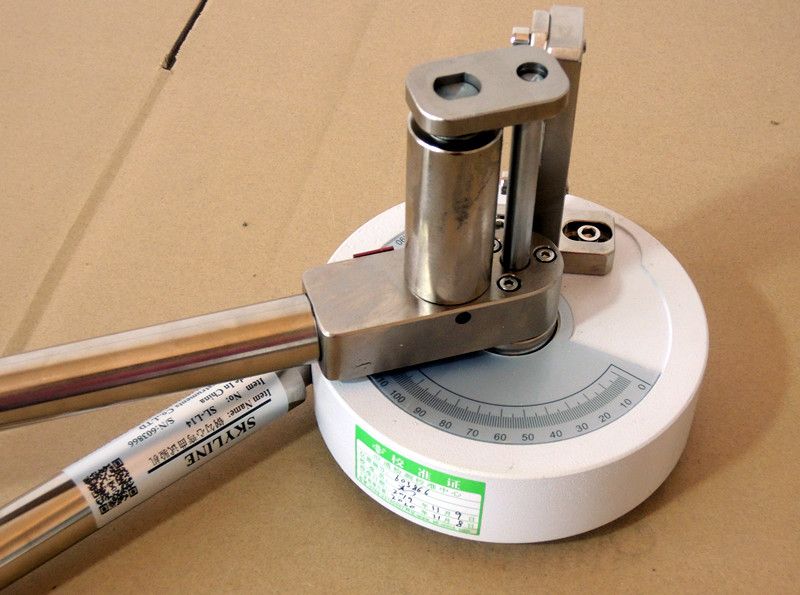

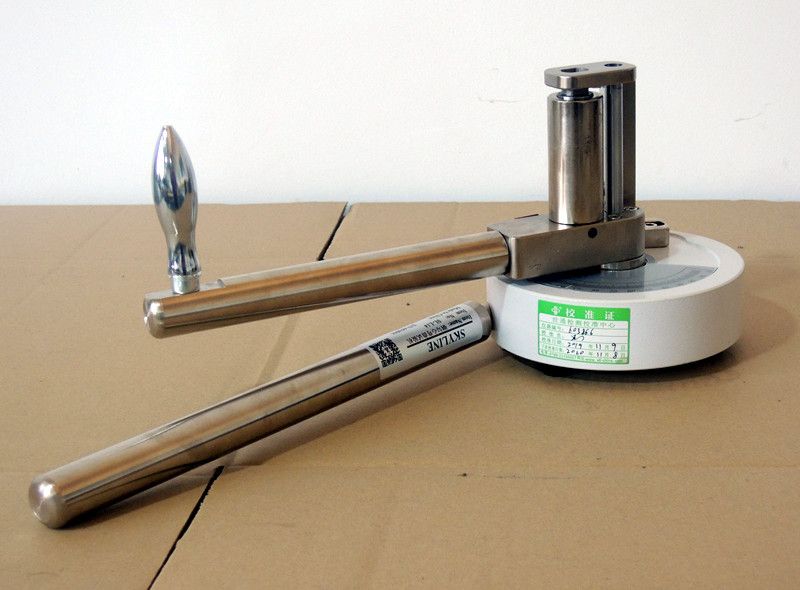

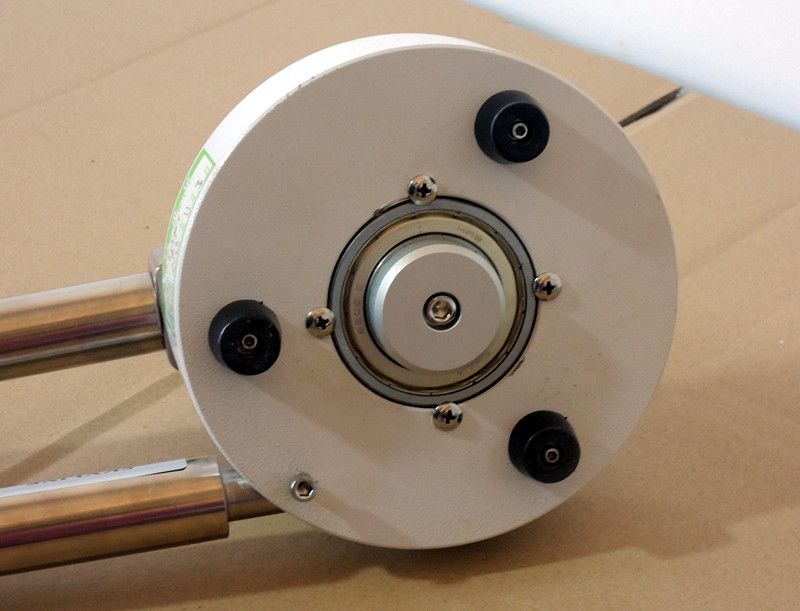

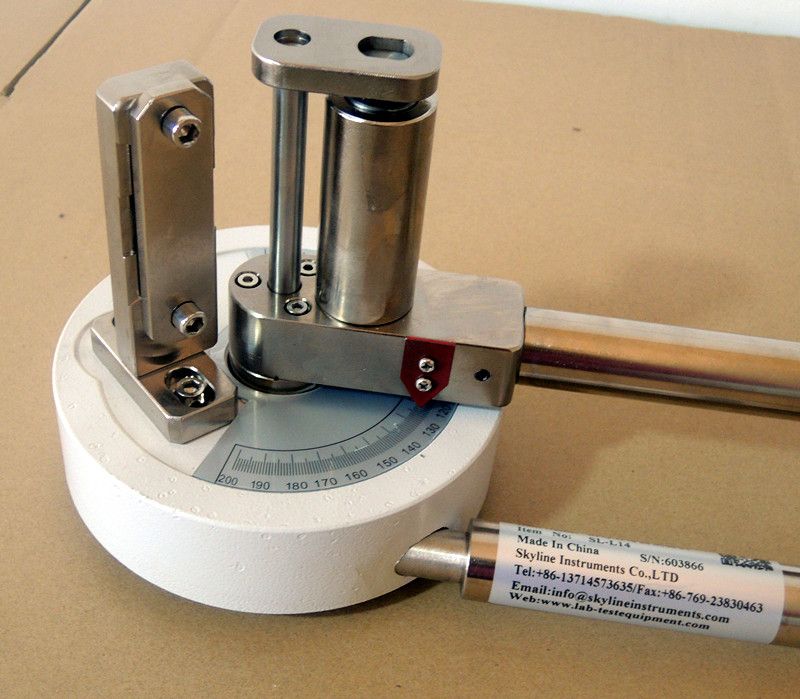

Steel Hook Bending Tester Machine

Application

It is mainly used to test the bending resistance of steel hooks.

The hooks are inserted into the fixture and rotated 180 ° around a column with a diameter of ∮10mm.

The surface is inspected for small cracks and fractures to determine its quality.

Meet the standards

GB 28011, QB / T 1812, QB / T 1813, BS 5131

Specifications
Bending angle: 0 ~ 180 °
Column: ∮10mm
Dimensions (length × width × height): 20x450x20cm

Weight: about 20kg

What is bending test of Steel?

A bend test is a method for measuring stiffness and yield properties of certain materials. Bend tests for ductility provide a simple way to evaluate the quality of materials by their ability to resist cracking or other surface irregularities during one continuous bend.
