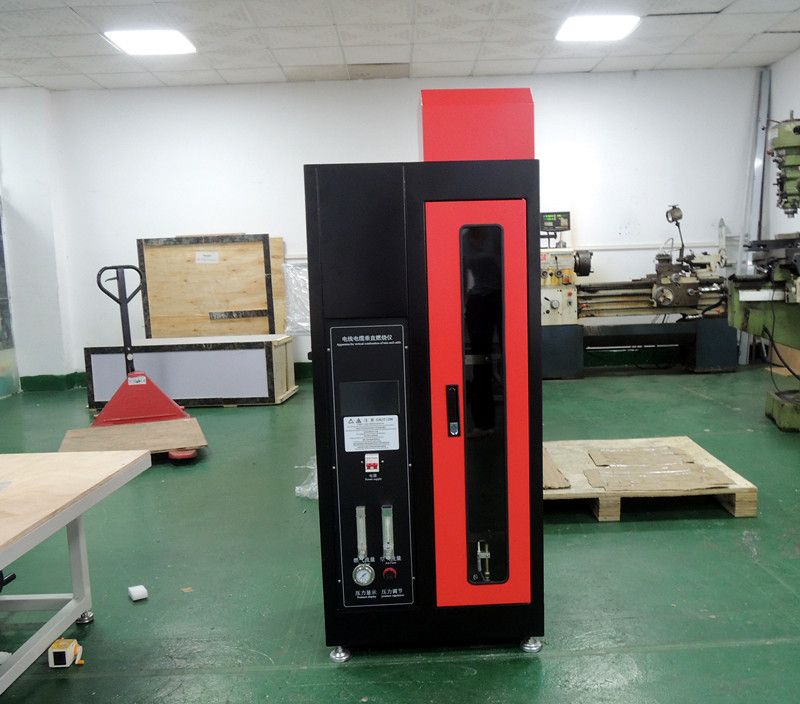

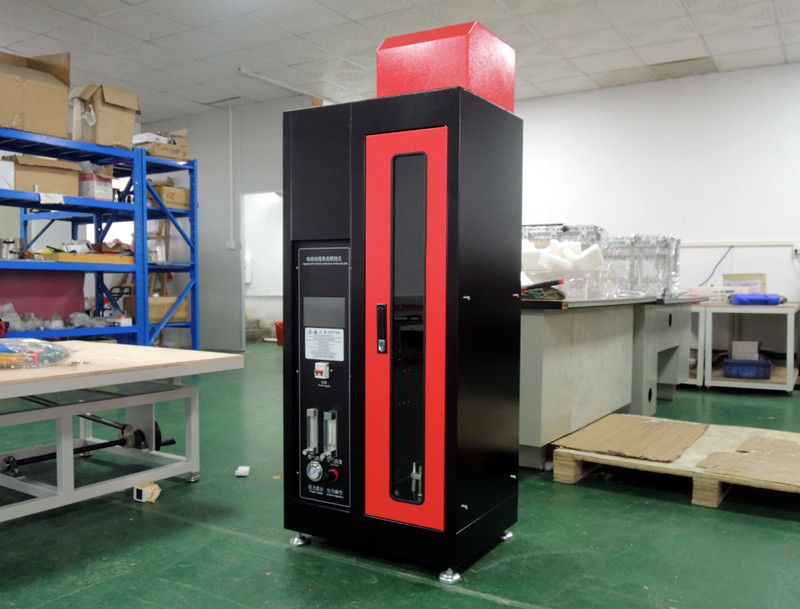

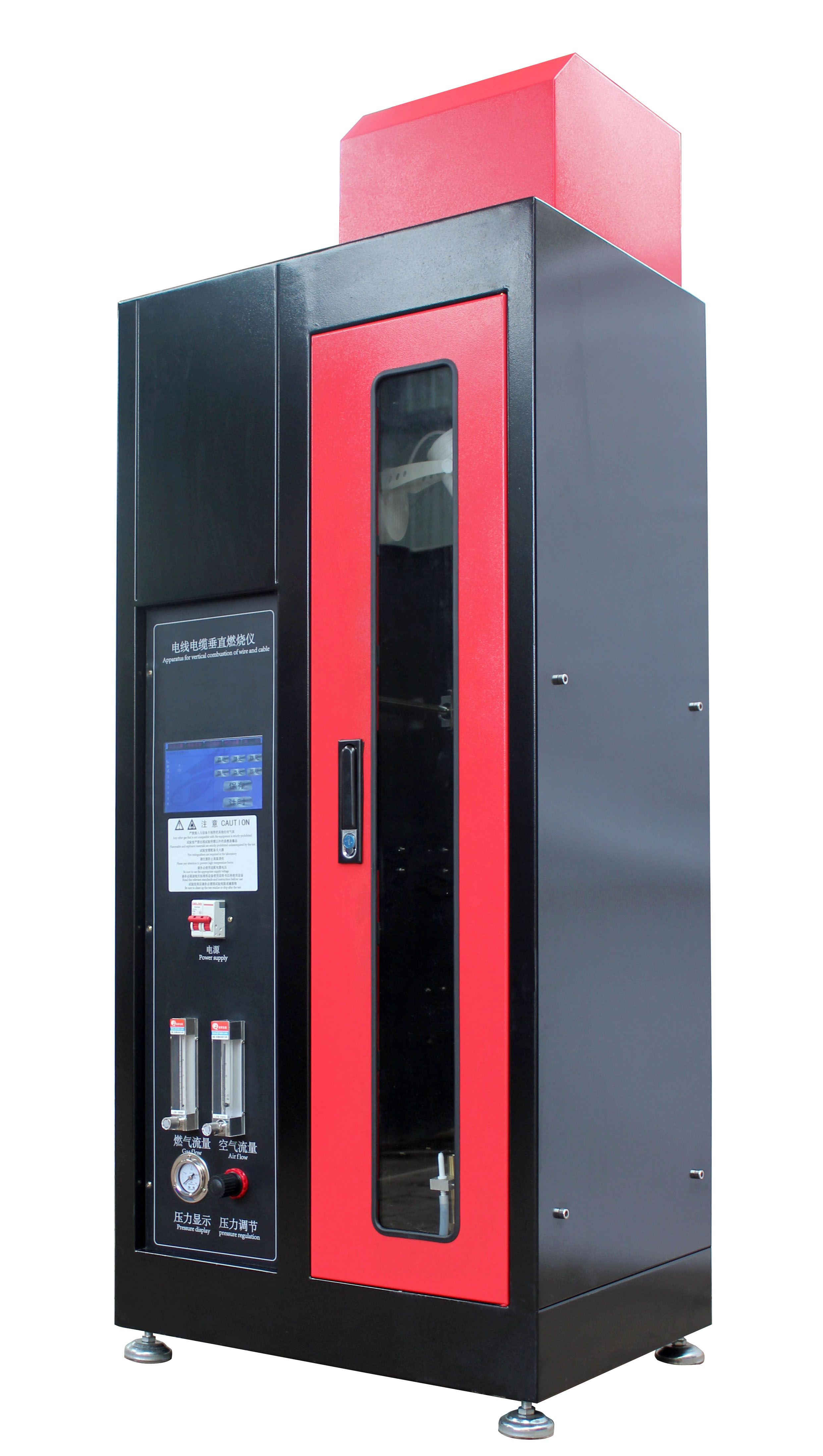

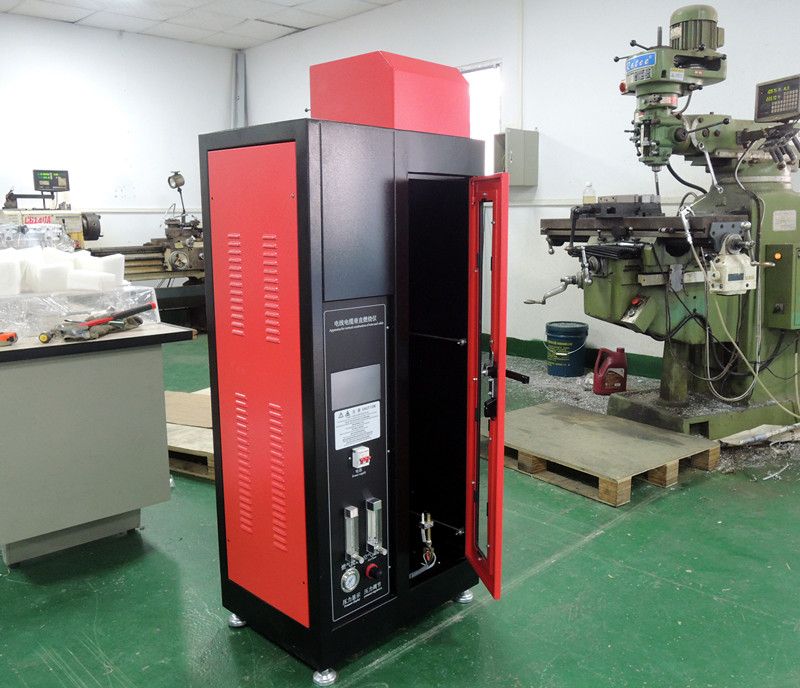

- SL-7603C Single Cable Vertical Flaming Tester
Product Introduction
IEC 60332 Single Insulated Wire or Cable Vertical Flammability Tester is used for conductor diameter greater than 8mm (cross-sectional area greater than 0.5mm2) or less than 8mm (cross-sectional area less than 0.5mm2) of the single wire and cable flammability assessment. It is suitable for the research, production and quality inspection departments of electrical and electronic products and components such as lighting equipment, low voltage electrical appliances, household appliances, machine tools, electrical appliances, electric tools, electronic instruments, electrical instruments, electrical connectors and accessories. In line with IEC 60332.
Standards
According to IEC60332-1-1:2004, IEC60332-1-2:2004, IEC60332-1-3:2004, EN50265-1, EN50265-2-1
Application
Applies to check thesingle insulation wire and cable vertical spreading test which total section area less than 0.5mm2
Technical parameters

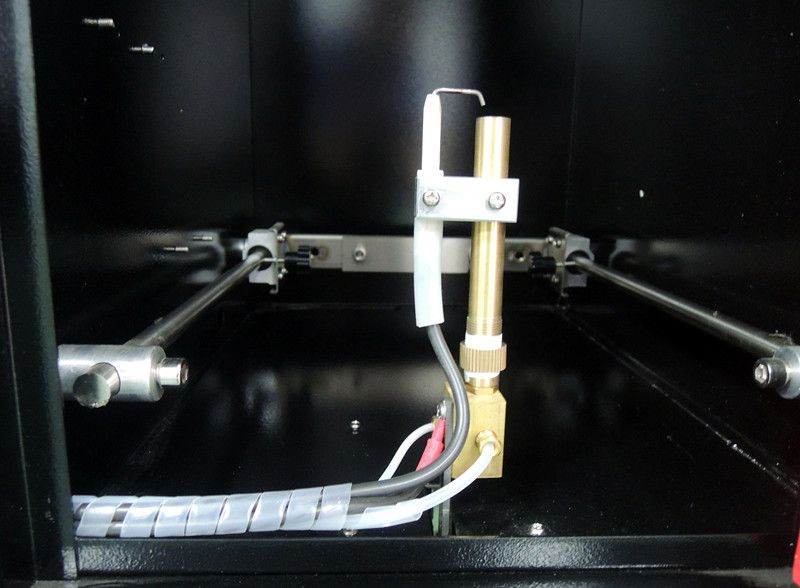

Vertical burning chamber W300xH1200xD450mm Gas Use high purity propane gas or liquefied petroleum gas (provide by user-self) Specimen length 600±25mm Area of specimen Total section area less than 0.5mm2 Testing temperature This device is located in a stuffiness room and the temperature keeping the 23±10℃ for testing Burning time continuously setting between 0.1-999.9S, during the setting time flame could continuously burning the specimen Control function Switch can choose to be manual or automatically according to the actual needed Gas flow range 0.1-1L/min Area flow range 0.1-1m3/h Burner 500W for standards power, 125±25mm for total height of the flame Temperature measurement system according to GB/T5169.14-2007 and IEC60695-11-03 standard requirements, including temperature copper (10g), K type thermocouple and diameter is 0.5 mm with stainless steel sheathed, stopwatch and thermometer etc. What is a Vertical flame Test?A test specimen is positioned vertically above a controlled flame and exposed for a specified period of time. Following exposure, the flame source is removed. Measurements are made on the length of time that the specimen continues to flame and the time afterglow continues after the flame source has been removed.
