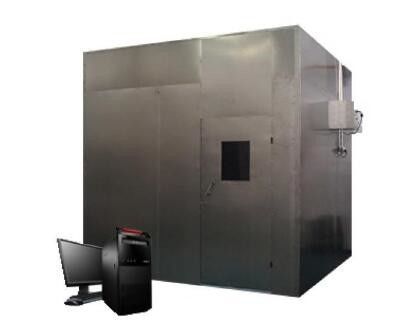

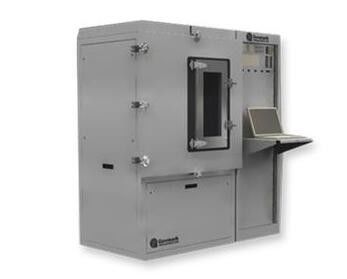

  • IEC61034 Wires & Cables Smoke Density Test Room / Flammability Tester

    IEC61034 Wires & Cables Smoke Density Test Room / Flammability Tester

  • detailed description
  • IEC61034 Wires & Cables Smoke Density Test Room


    Application

     Applies to check the size quantity of producing smoke of cables or optical fiber under prescriptive fire source.


    Standards

    According to  IEC61034-1997, GA306.1-2007, GA306.2-2007


    Techncial parameters

     Burning room size  W3000*D3000*H3000mm (27m3), made of stainless steel
     Standard fire source  1.00L±0.01L alcohol
     Illuminant nominal power   100w, nominal voltage:DC12v±0.01V
     Sensor  photocell, load resistance≤100Ω
     Measurement range  0~100%
     Alcohol dish  bottom: 210mm×110mm;top:240mm×140mm;height:80mm
     Desktop fan  Rotating shaft is 200mm~300mm from found, 500mm±50mm from wall. Fan blades size of 300mm ± 60mm, wind speed:7~15 m3/min
     There is a transparent seal window by two sides of the burning chamber. Min size  100mm×100mm,height: 2150mm
