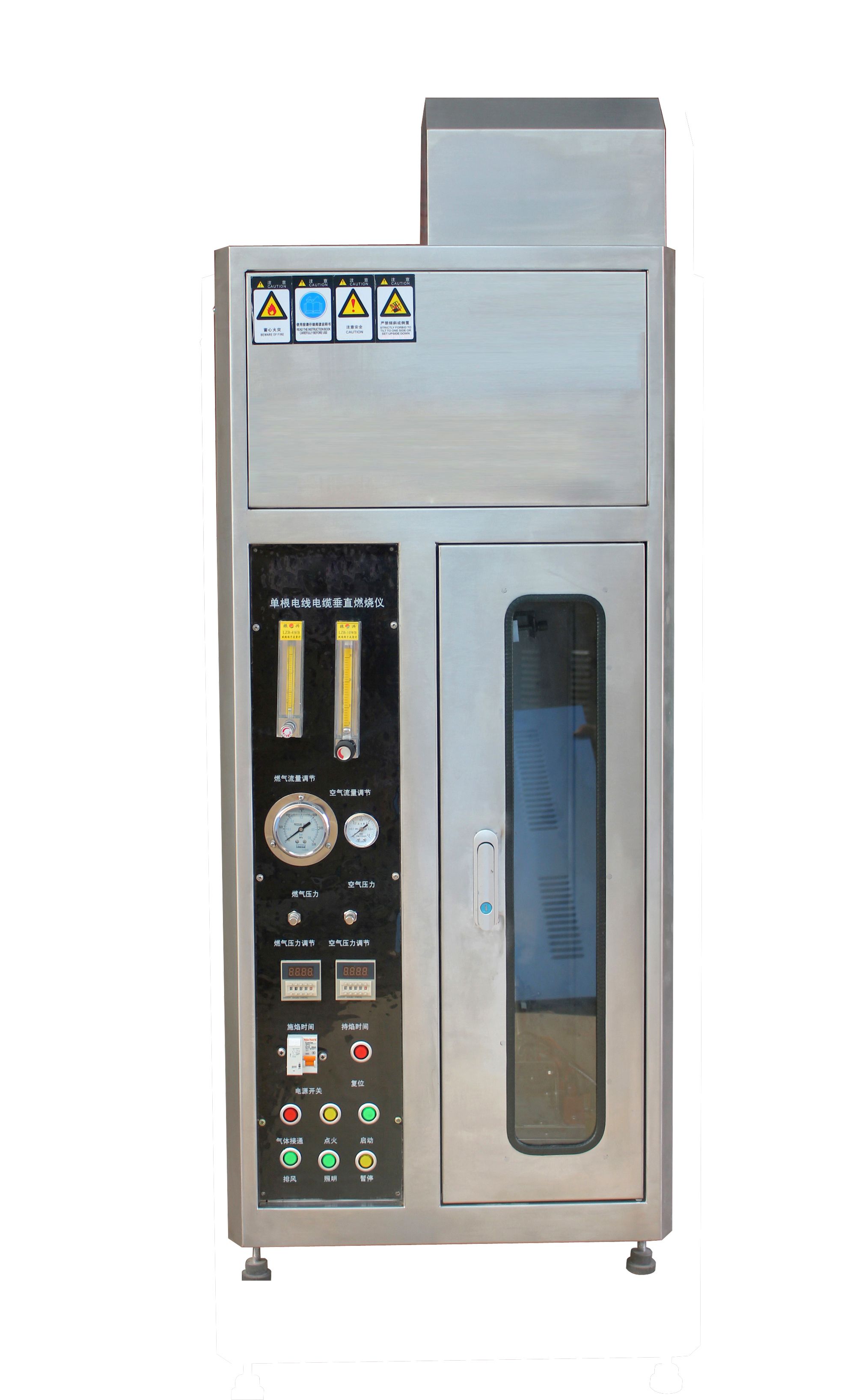

SL-7603A Single Cable Vertical Flaming Tester

Application

Applies to check the section area more than 0.5mm2 of single insulation wire and cable vertical flame propagation testing.

Standards

According to IEC60332-1-1:2004, IEC60332-1-2:2004, IEC60332-1-3:2004, EN50265-1, EN50265-2-1

Technical parameters

Burning chamber	W300xH1200xD450mm
Gas	Use high purity propane gas or liquefied petroleum gas (provide by user-self)
Specimen length	600±25mm
Area of specimen	the section area more than 0.5mm2
Testing temperature	This device is located in a stuffiness room and the temperature keeping the 23±10℃ for testing
Burning time	continuously setting between 0.1-999.9S, during the setting time flame could continuously burning the specimen
Control function	Switch can choose to be manual or automatically according to the actual needed
Gas flow range	0.1-1L/min
Area flow range	0.1-1m3/h
Burning blowtorch	1KW for standards power, 50～60mm for height of blue luminous cone, 170～190mm for total height of flame, according to IEC60695-11-2:2003 standard requires.
