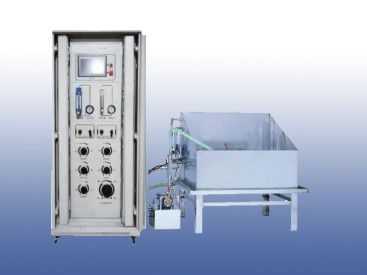

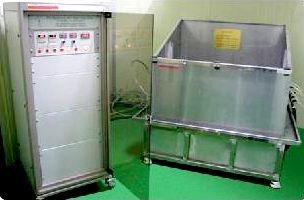

    SL-7606S Wire & Cable resistance to Fire with Water

    SL-7606S Wire & Cable resistance to Fire with Water

  • detailed description
  • SL-7606S Wire & Cable Resistance to Fire with Water

    Standards
    According to IEC60331-11, IEC60331-21, IEC 60331-1, IEC 60331-2, EN50200, EN50362, BS6387: 1994, BS7846, BS8431-1, BS8434-2, BS8491 etc.

    Application

    Used for testing wires & cables with the rated voltage through the different refractory level,detect the fire resistance of the insulation, check insulation whether breakdown and circuit’s integrality.

    used for testing wires& cables with the rated voltage through the differently refactory level,detect the fire resistance of the insulation ,


    Techincal parameters
    Testing power AC0-1000V, continuously adjustable, current: AC0.01-0.70A,four circuits independent continuously adjustable
    Ribbon burner nozzle length is 500mm, width is 15mm, contain the venturi mixer
    Burning gas propane or other gas
    Testing temperature 650±40℃
    Specimen size length about 400mm
    Temperature sensor ø 2.0 mm Platiniridium temperature sensor, below the specimen
    Spraying head pressure During 250-350Kpa, flowing speed: 0.25-0.3L/S.m2



    SL-7606S Wire & Cable resistance to Fire with Water IEC60331-11
