  • Site:Home > Cables Flammability Testing Equipment > EN 60903 Fire Testing Equipment Vertical Flame Tester
  • Product Images

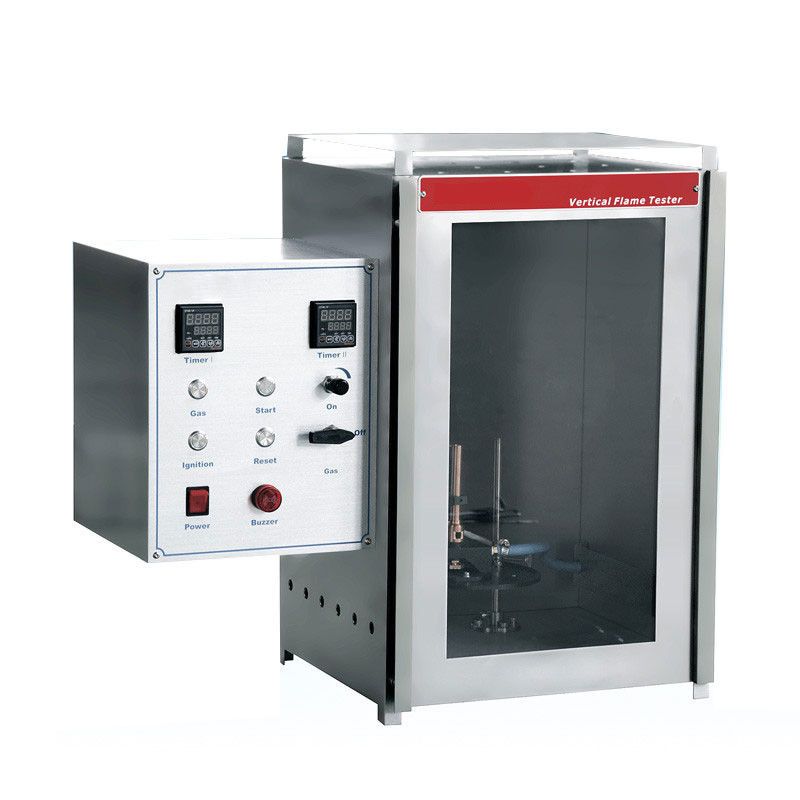

  • EN 60903 Fire Testing Equipment Vertical Flame Tester

  • detailed description
  • Fire Testing Equipment AQ 6103,EN 60903 Vertical Flame Tester



    Product Introduction

    According to GB/T 17622-2008 and EN 60903 the insulating glove fire resistance test device is developed, which is suitable for live work insulating gloves fire resistance test.



    Performance characteristics

    1. Standard stainless steel box with transparent observation window can detect flame spread rate in time.

    2. One stopwatch timer and one ignition device each.

    3. Needle valve regulates the height of flame.

    4. The burner is fixed on the sliding track for easy operation. The needle valve can adjust the flame height.

    5. Equipped with ASTM D5025 standard Bunsen lamp with inner diameter of 9.5 mm (+0.3 mm), the flame temperature and height can be adjusted.

    6. Equipped with GB/T 17622-2008 6.6.2 standard stainless steel sample stand two;

    7. Equipped with flame height gauge.



    Standard:AQ 6103,EN 60903:2003,GB/T 17622:2008

    Application: Safety Protection

    Dimension 500mm (W) X 550mm (H) X 300mm (D)

    Weight 19 KG


    Installation requirements

    Electrical requirements: 220V, 50HZ, 3A

    Environmental Requirements: Temperature (20+2)degree C, Humidity (65+5)%

    Gas requirements: propane
