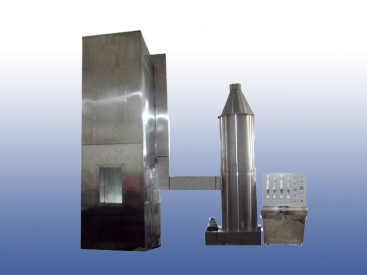

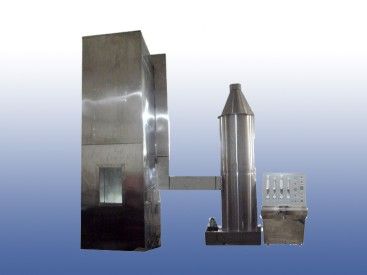

    SL-7603S Wire & Cable Bundle Flaming Tester

    SL-7603S Wire & Cable Bundle Flaming Tester

    SL-7603S Wire & Cable Bundle Flaming Tester

  • detailed description
  • SL-7603S Wire & Cable Bundle Flaming Tester (Ladder type Flaming Tester)



    Application

    Apply to evaluate suppression ability of spread of fire for bundles installed wires and cables ,under specified conditions.


    Standards

    According to  IEC60332-3-10:2000,and GA306.1-2007



    Main components

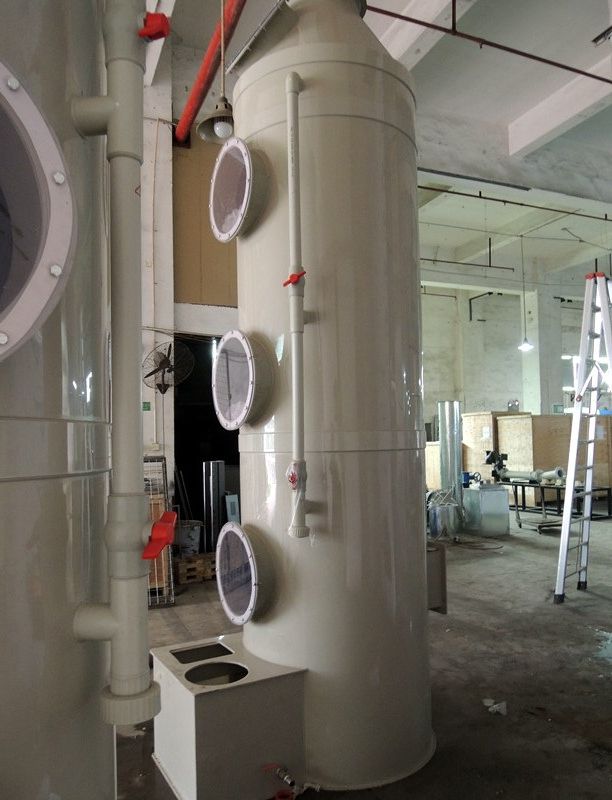

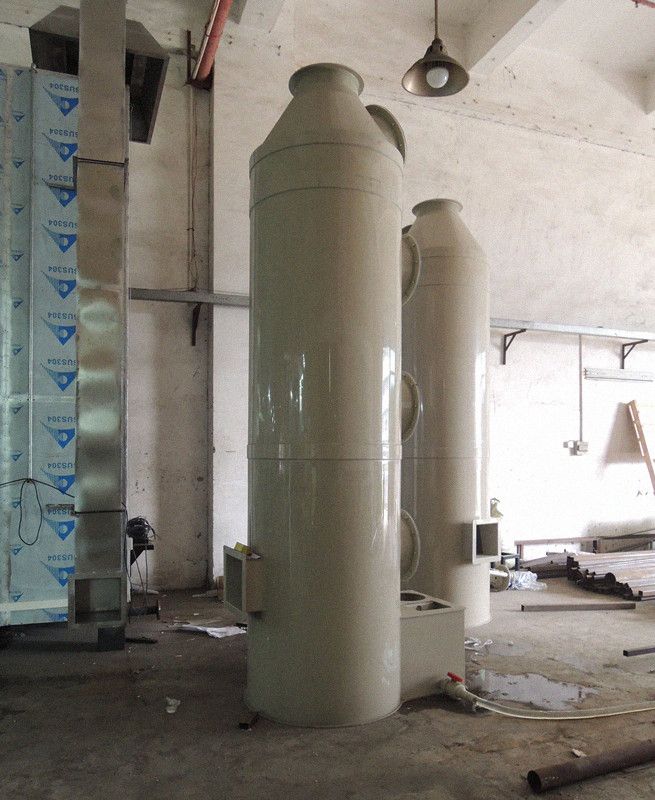

    Testing chamber, electric control system, air source, ignition source flew control system (propane gas and air compressed gas), steel elevator, Fire extinguishing devices, emissions purification equipment (user option).


    Technical parameters
    Burning box size W1000*D2000*H4000mm
    Entrance air flow(speed) 5000±500L/min
    Burning ladder frame W500mm*H3500mm and W800mm*H3500mm, With automatic up and down device
    Fuel gas Nominal purity 95% technical propane
    Burner 20.5±0.5kW belt type
    Testing environment Outer wing speed≤8m/s or temperature of inner testing wall during 5℃~40℃
    Burning timer The time is applying flame to specimen continuously, and range is 0.1-999.9min setting and displaying continuously
    Sustained burning timer The time is after stop to supply the burner gas and the test sample still flaming or lighting, and the range is 0.1-999.9min timing continuously
    Area flow-meter 1~100 L/min Qty.: 2pcs
    Gas flow-meter 1~50 L/min, Qty. :2pcs

    SL-7603S Wire & Cable Bundle Flaming Tester (Ladder type Flaming Tester)
