  • Site:Home > Cables Flammability Testing Equipment > SL-7603B Single Cable Vertical Flaming Tester
  • Product Images

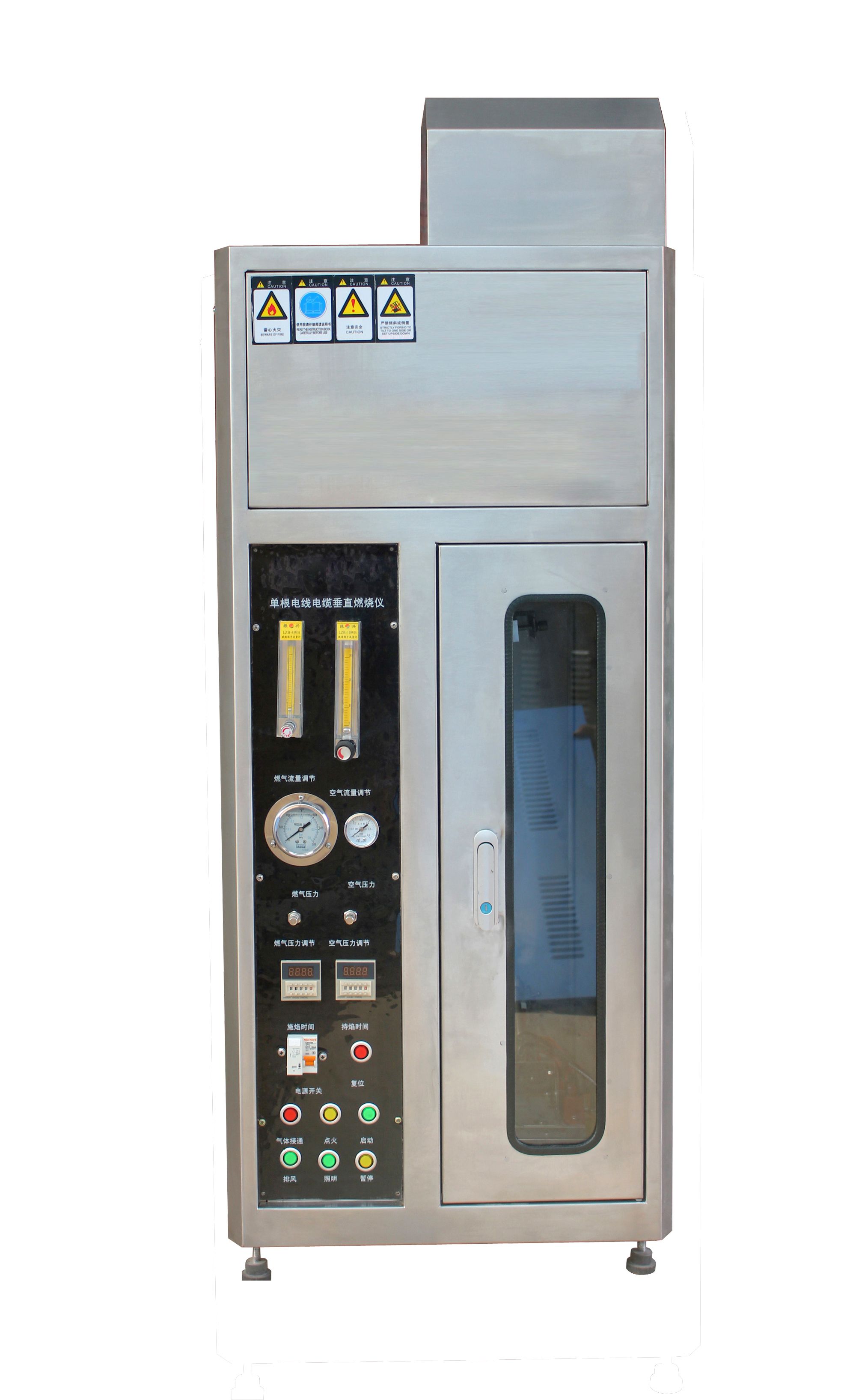

  • SL-7603B Single Cable Vertical Flaming Tester

  • detailed description
  • SL-7603B Single Cable Vertical Flaming Tester


    Application

    Applies to check thesingle insulation wire and cable vertical spreading test which total section area less than 0.5mm2


    Standards

    According to  IEC60332-1-1:2004, IEC60332-1-2:2004, IEC60332-1-3:2004, EN50265-1, EN50265-2-1


    Technical parameters
    Vertical burning chamber W300xH1200xD450mm
    Gas Use high purity propane gas or liquefied petroleum gas (provide by user-self)
    Specimen length 600±25mm
    Area of specimen Total section area less than 0.5mm2
    Testing temperature This device is located in a stuffiness room and the temperature keeping the 23±10℃ for testing
    Burning time continuously setting between 0.1-999.9S, during the setting time flame could continuously burning the specimen
    Control function Switch can choose to be manual or automatically according to the actual needed
    Gas flow range 0.1-1L/min
    Area flow range 0.1-1m3/h
    Burner 500W for standards power, 125±25mm for total height of the flame
