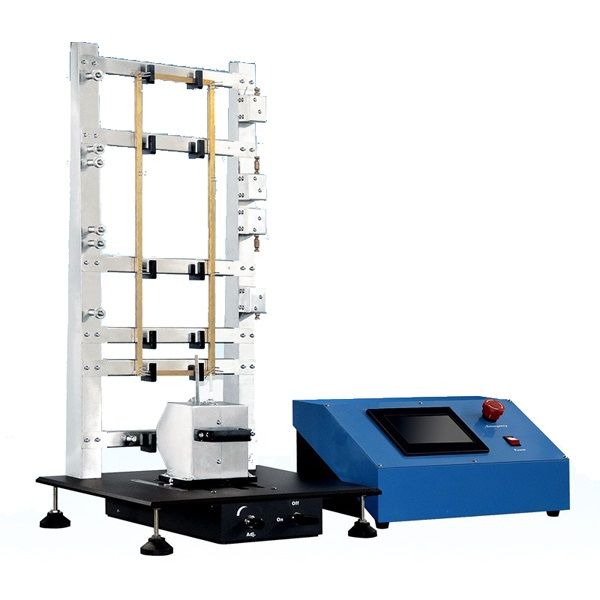

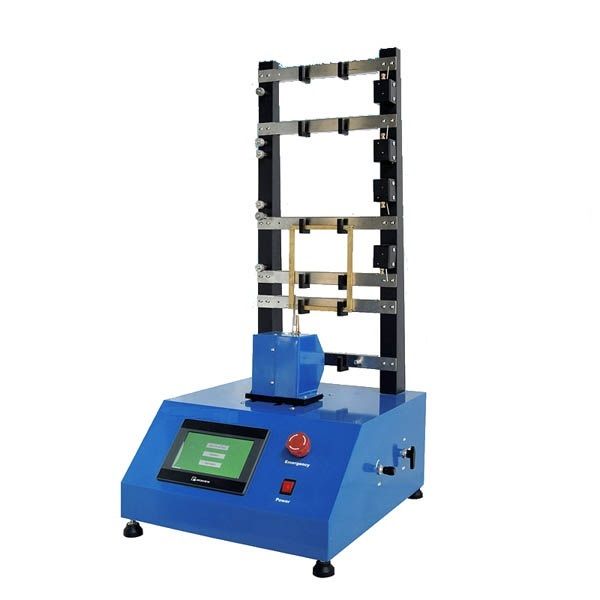

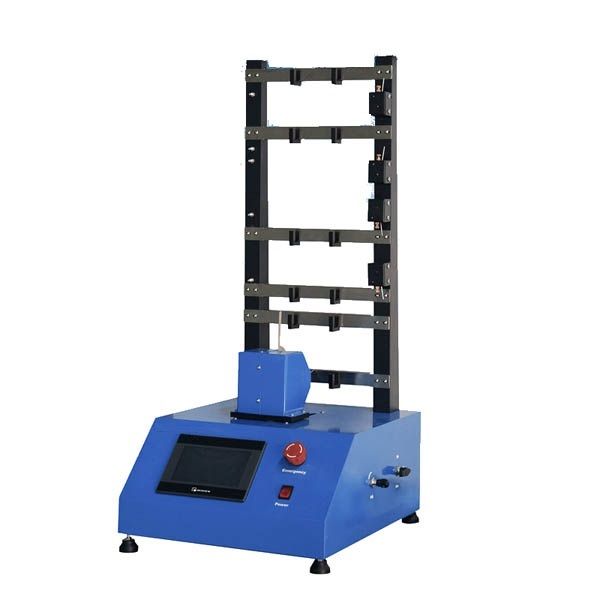

ISO15025 Fire Testing Equipment Vertical Flame Tester

Product Introduction

Vertical Flame Tester is suitable for the measurecan be pre-setted and adjusted automatically.ment of limited flame spread properties of Protective clothing. A defined flame from a specified burner is applied for 10 s to the surface or the bottom edge of textile specimens which are vertically oriented.​

Product Feature
The apparatus is designed and manufactured according to ISO 15025 standards.
The apparatus can be updated to meet the requirement of ISO6941,ISO 6940 etc by using different specimen holders.
The apparatus consists of mounting frame, gas burner, test specimen holder with Supporting pins.
The angle of the burner can be pre-setted and adjusted automatically.
Flame application time can be pre-setted and operate automatically.
Afterflame time and afterglow time recorded by LCD screen

Standards

AQ 6103,ISO 6940:2004, ISO 6941:2003, ISO 15025:2000,GB/T 5456:2009

Size 800mm (L) X 600 mm (W) X 900mm (H)

Weight 40KG

Installation requirements

Electrical requirements: 220V, 50HZ

Environmental Requirements: Temperature (20+2)degree C, Humidity (65+5)%

Gas requirements: propane gas
