  • Product Images
  • SL-7607 Mining Cable Burning Tester

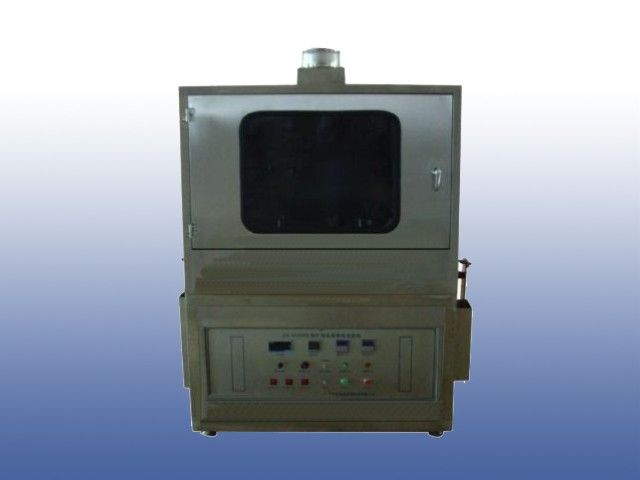

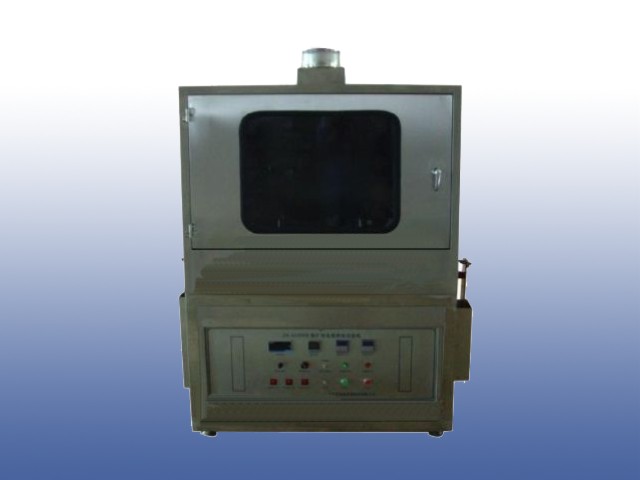

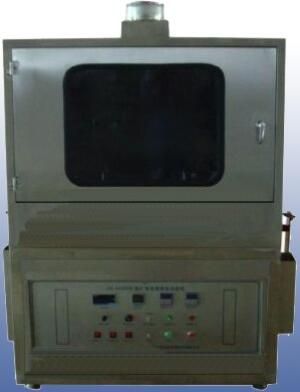

    SL-7607 Mining Cable Burning Tester

  • detailed description
  • SL-7607 Mining Cable Burning Tester

    Application

    Apples to check the coal mine cable for flaming resistance test and cable connector head flaming test.


    Standard

    According to MT386-1995 and MT818.1~3-2009


    Technology parameters
    Load current AC10.0~3000A adjustable, Adopt the touch button for setting
    Burner Inner diameter is 9.5mm, burner tube made by H62 brass
    Flame height inner flame is 75±5mm and outside flame is 125±10mm
    Gas Methane which the purity ≥ 95%
    Exhaust system Stop during the testing and Start after testing by manual
    Temperature Sensor 0~800℃,K style thermocouple: φ1mm*50mm.There is buzzer prompt when temperature be up to 204℃±2℃
    Burning timer 0.1-999.9S/H/M adjustable continually
    Extending-fire timer 0.1-999.9S/H/M adjustable continually, which with a Stop button

    SL-7607 Mining Cable Burning Tester MT386-1995 and MT818.1~3-2009
