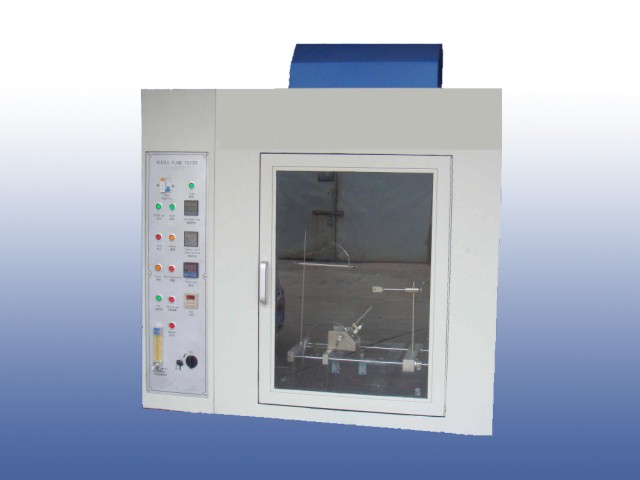

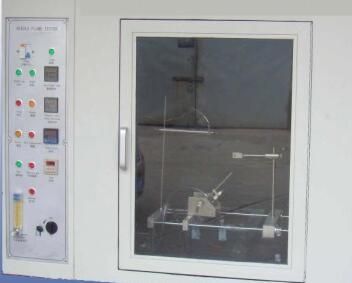

    SL-7610 Needle Flame Tester

    SL-7610 Needle Flame Tester

  • detailed description
  • SL-7610 Needle Flame Tester


    Application

    It used to determine flammability, ignition temperature and fire fatalness for products, which include lighting, low voltage electronic appliances, household appliances, electric tools and instruments. It is also applied to plastics and insulation materials, electric connectors etc.


    Standards
    According to IEC60695-2-10~13, IEC829, GB4706.1 and GB/T5169, UL746A, DIN695 and VDE0471 standards.


    Technical Parameters

    Burner  I/D Ø0.5mm ± 0.1mm, O/D≤Φ 0.9mm, and length ≥ 35mm made of stainless steel
    Angle of burner  Can be vertical (when adjust and measuring the flame height), and incline (when for testing)
    Burning layer Pine board (Thickness is 10mm) with a layer of wrapping tissue (12~30 g/m2, 200±5mm) on it
    Burning gas Butane or propane, the purity is 95%
    Flame temperature Heating rising from 100 ± 2°C to 700 ± 3°C within 23.5±1.0s
    Flame height 12mm ± 1mm, can be adjust
    Burning time 0 ~ 999.9s can be setting and digital displayer
    Duration burning timer 1-999.9s, digital displayer and can press stay button for keeping the display)
    Burning room ≥ 0.5m3 , with black color
    Temperature sensor K-type thermocouple and the diameter is Φ 0.5mm, the max temperature is 1100°C
    Measurement L1120 * W520 *H1250mm, and exhaust hole is Φ100mm
    Power supply 220V/AC, 50Hz, can be design as customer’s request

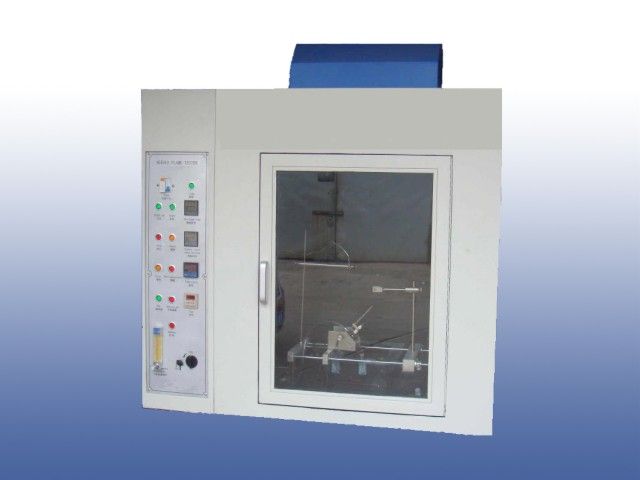

    SL-7610 Needle Flame Tester
