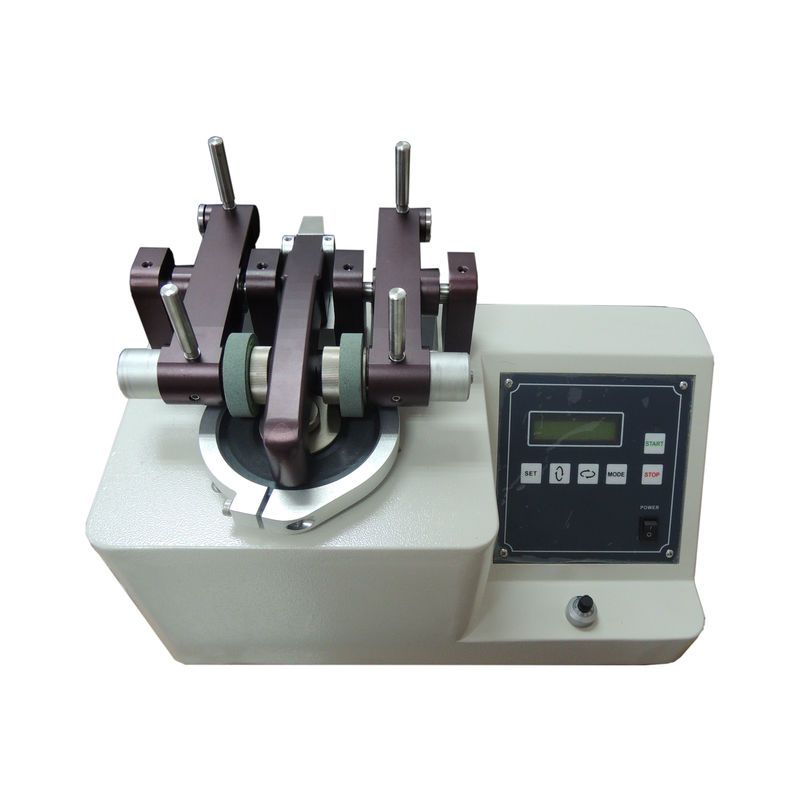

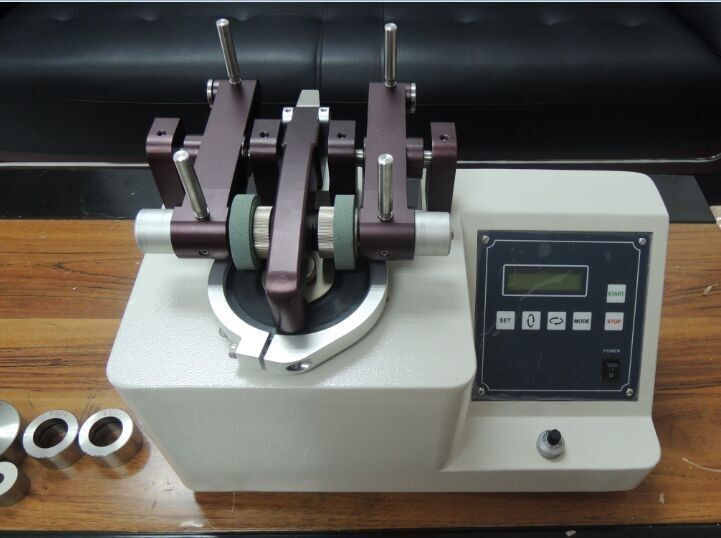

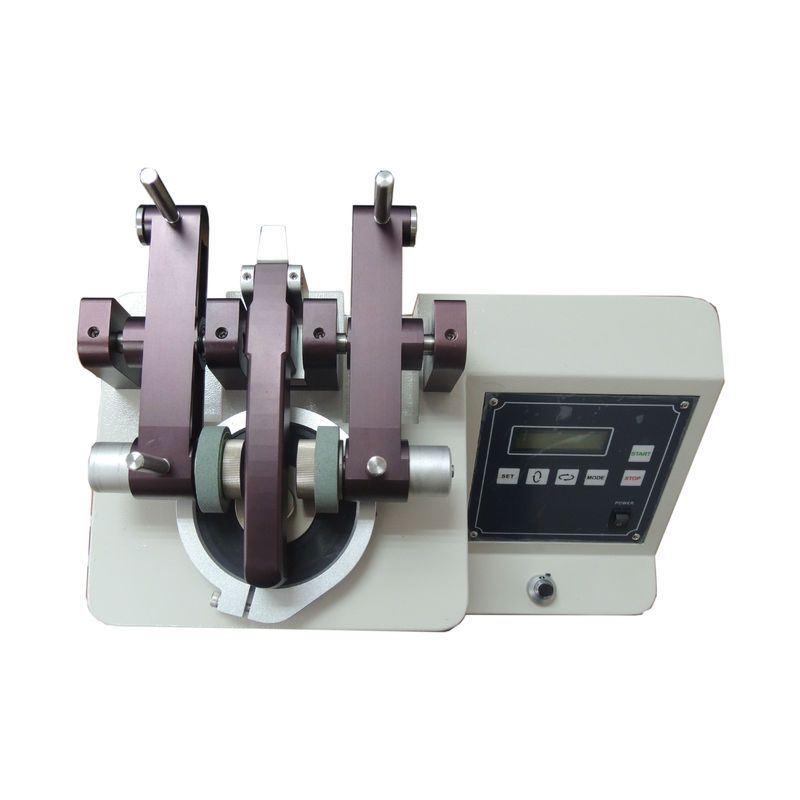

Taber Abrasion Performance Tester
Product introduction
This tester applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be removed after rotation to reach a certain number, observe the condition of the specimen or compare the weight with the previous material's, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.
Standards
DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470
Applicable industry
It is used in testing the performance of leather products, such as suitcases, carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research laboratories; Commodity inspection, arbitration, and technical supervision departments,
The formula is
Abrasive index formula: × 1000
Testing reference:
Paint brick plywood plastic
CS10
CS17 CS17 S32
S33 CS17
H18\H22
Technical parameters
Specimen 120 × 6.5 × 3mm Load 250g, 500g, 1000g Counter 6 digit electronic display, automatic shut down Testing Disk Speed 0-70 Adjustable Machine Dimensions 30 × 43 × 30cm Machine Weight 30kg Attachment A wrench, a group of grinding wheel, Fama (250g, 500g, 750g) each 2 PCS. Vacuum cleaner 1 Power supply AC220V/50Hz
What is Taber abrasion test?
Taber abrasion is a test to determine a plastic's resistance to abrasion. Resistance to abrasion is defined as the ability of a material to withstand mechanical action such as rubbing, scraping, or erosion. Abrasion can be difficult to compare but haze variation or weight loss are often evaluated.
What is the purpose of abrasion test?
Abrasion testing is used to test the abrasive resistance of solid materials. Materials such as metals, composites, ceramics, and thick (weld overlays and thermal spray) coatings can be tested with these methods.
