- Site：Home > Furniture Testing Machine > Tables Test Machines > SL-T26 Table Integrated Test Machines
- Product Images
- detailed description

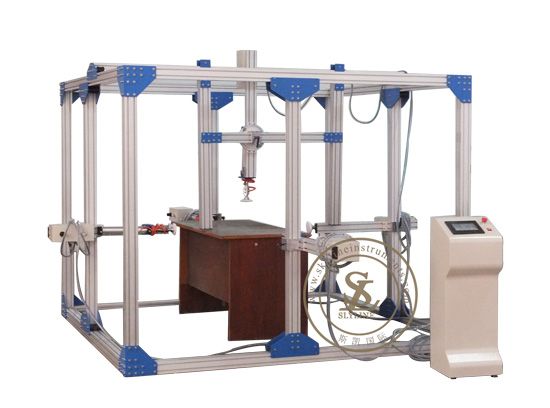

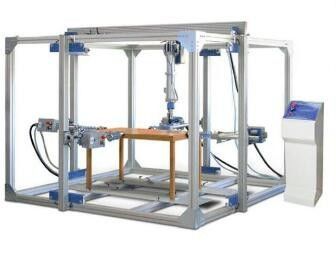

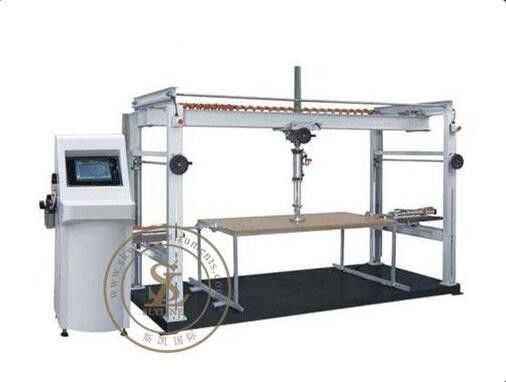

Table Integrated Test Machine
Use
This test machine used for testing the strength and stability of tables and trollys.Can do following testing.
Strength testing1. Vertical static load test2. Sustained load test3. Horizontal static load test4. Vertical impact test
Stability Testing1. Vertical stability test2. Horizontal impact test.Testing standard: IS5967
Technical parametersBasic Test Frame 2.5x2.5x2m,be made of 80x80mm Alu.material Load air cylinder diameter 50mm, 4 pcs,stroke 300mm,max load force up to 1500N Impact cylinder diameter 50mm, 1pcs, stroke 400mm Load air cylinder diameter 80mm,1pcs,stroke 500mm, max load force up to 2500N Force sensor high precision sensor,capacity 2KN,4 pcs；5KN,1 pcs Control way touch screen + PLC control Counter 0~999999 times (can by adjusted) Force adjust precision pressure valve equipment with sensor to disply Air supply 7kgf/cm^2 Power supply 1∮ AC 220V 50Hz 5A
Features1. Use high quality Alu.material to make the frames, elegant appearance2. Testing frames use sheave structure, can be adjusted to fit different sample.3. Bottom fix panel can be adjusted to fit different size sample4. With PLC controller, easy operate
Testing Standards
EN 527-3, EN581-3 and BIFMA X5.1, IS5967
What is a testing table?
Test tables are used to provide a structure to testing. Programmers will often create a table with a selection of normal, extreme and exceptional data that they intend to use during testing. The table will include: a column for the expected result. a column for what actually happens when the program runs.
