- Site：Home > Furniture Testing Machine > Furniture Testing Equipment > SL-T10 Chair Caster Fatigue Testing Machine
- Product Images
- detailed description

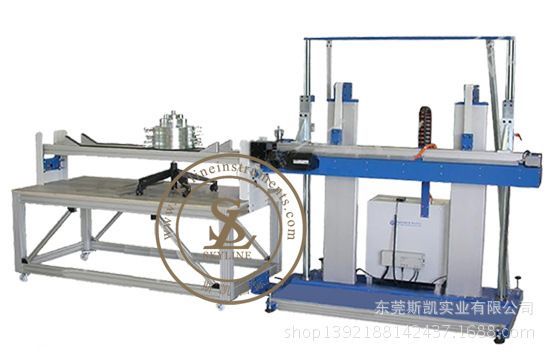

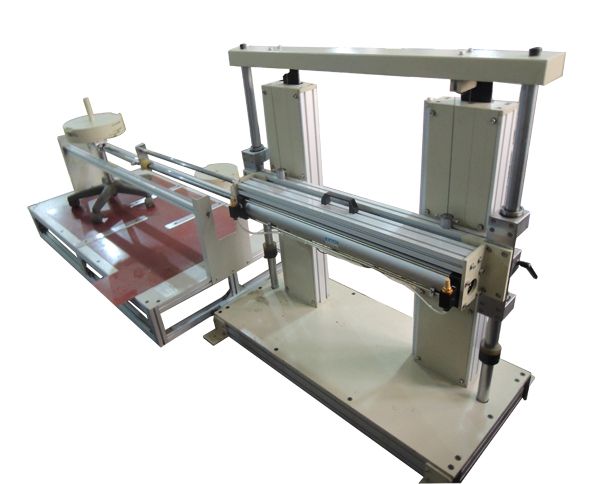

BIFMA 5.1 Furniture Testing Equipment Caster and Chair Base Durability Tester
ApplicationThis test applies to pedestal base chairs with casters.
The purpose of this test is to evaluate the ability of the chair base and casters to withstand
fatigue stresses and wear caused by moving the chair back and forth.
standard: ANSI/BIFMA X5.1-17
Technical parametersLoad weight 102kg,plus Move stoke 800mm Block width 51mm,thickness 3.2mm,three pieces ,detachable Drive mode drive by cylinder Test speed 10±2 times /min Test times with block 2000 times ,98000 times without block Counter 0~999999 times ,can be set Air source 6kgf/cm^2 Features
12mm steel plate welded below the 100 GB channel, laying stainless steel top. Installation activities corners and locking casters.
Jumbo aluminum. Overall vertical solid and beautiful.
Touch screen + PLC + power sensor + specimen position sensor, the whole forming a closed-loop control. Loading speed can be adjusted. Easy installation
Test standardBIFMA X5.1 17 Clause
Can you replace the bottom of an office chair?
Avoid excessively spinning or rolling around in your office chair to avoid having to replace the base. Office chair bases and replacement parts can be found in office supply stores and online.
