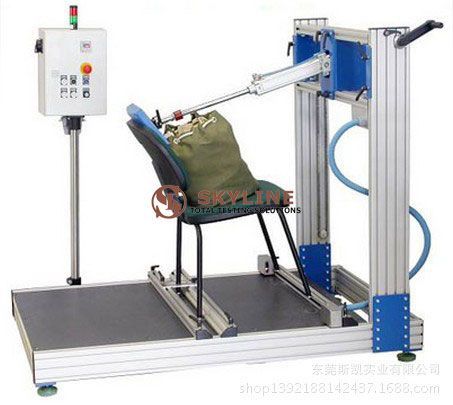

- SL-T42 Chair Back Endurance Testing Machine
Application
It is used to simulate the situation where people in daily life sit back and lean back against the backrest of the chair. It is suitable for evaluating the fatigue pressure and wear capacity of the chair caused by the force of the backrest.StandardsANSI/BIFMX5.1-10/15/16/18/12.3Technical parametersSeat loading 102kg (225Lb), weight accumulative Backrest loading force value 334N (75Lb) / 445N (100Lb) Test speed 10~30 times/min Number of tests 80000/120000 times Counter 0~999 999 times can be set Force adjustment method Adjust the air pressure + power sensor Motion control PLC control, text display Volume (W*D*H) 120*100*130cm Gas source 6kgf/cm^2 or more stable gas source Power Supply 1Ф, AC220V, 3A Backrest loading position: When the backrest height is greater than 452mm: 406mm, when the backrest height is less than 452mm: Load the top of the backrestBackrest loading force direction: The angle between the output direction and the backrest surface is 90°±10°Related configuration
Cylinder: cylinder diameter 50mm, stroke 300mm
Bracket: industrial high-strength aluminum profile, 80mmx40mm
