  • ASTM F1566 Mattress Rollator Testing Machine

    Product introduction

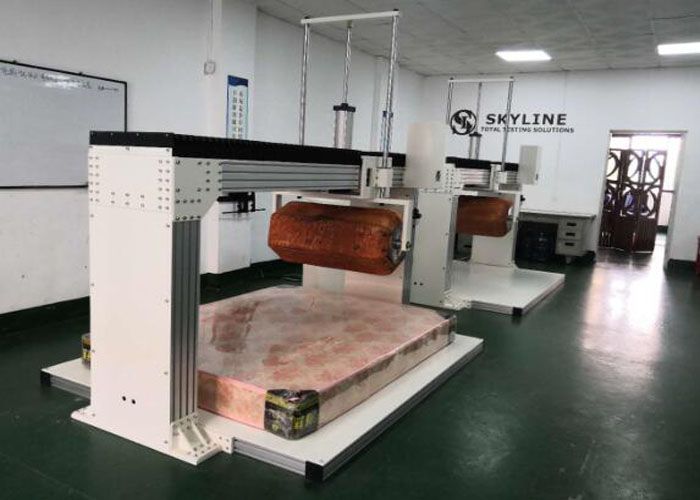

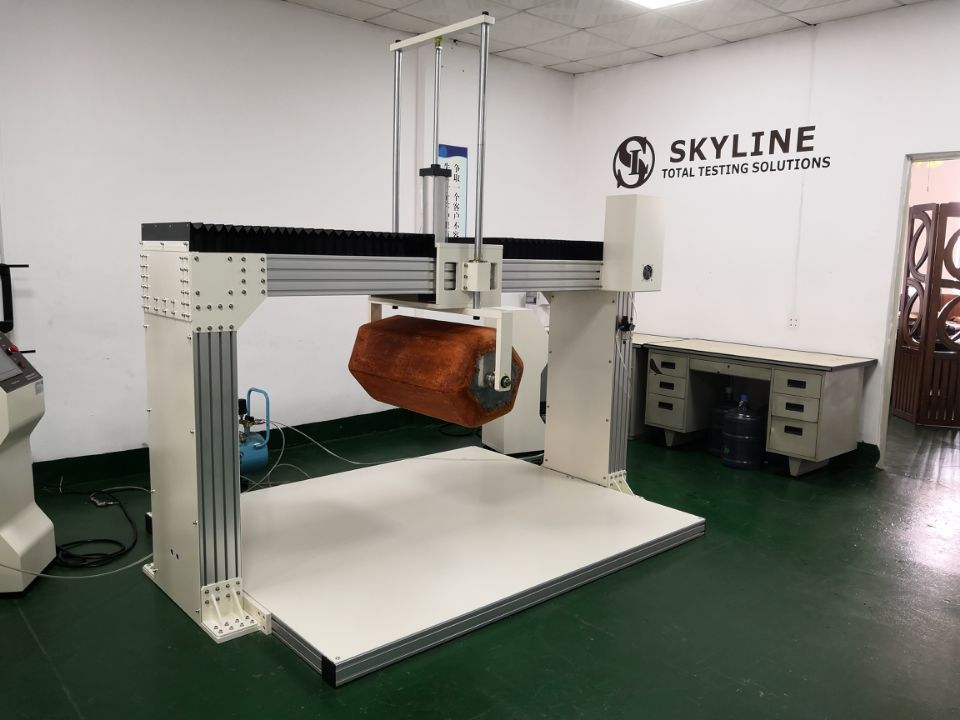

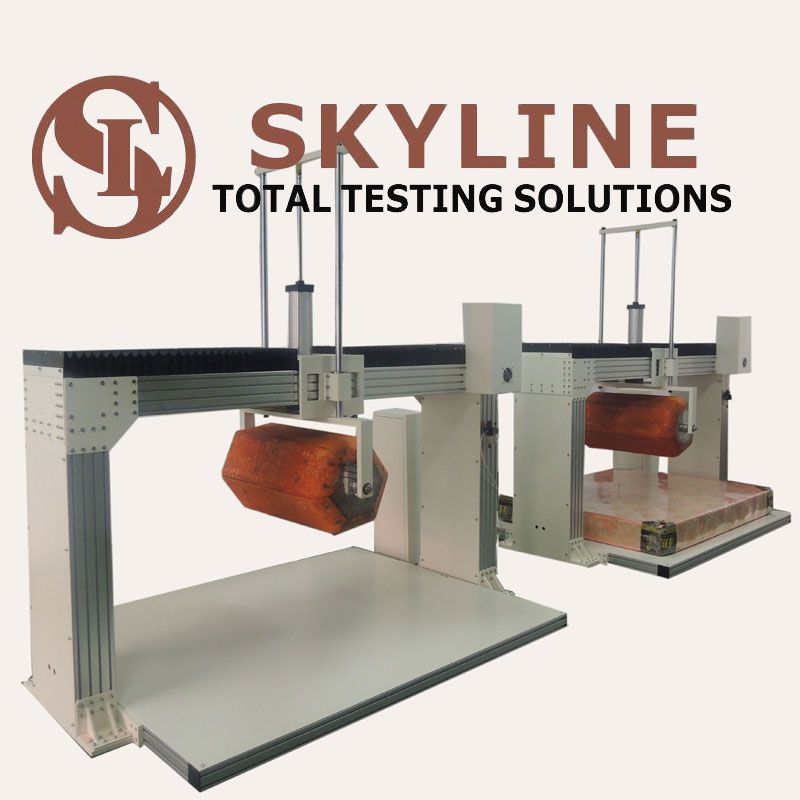

    Use a horizontal scroll in wooden barrels or hex (at both ends of the cylinder diameter 250 mm, 300 mm, the middle part of the test on the mattress, scroll back to assess human action mattress durability.

    Wooden hex barrel weight = 109KG, cylinder weight = 140 KG.
    According to different mattress size, scroll, adjustable (adjustment of the limit switch)
    Low friction coefficient guides to ensure that the barrel weight fully to the mattress.
    Suitable mattress greatest dimension 2.3 X 2.5M.

    Text display provides a simple manipulation and creation.

    Testing Standards

    ASTM F1566, EN1957


    Technical parameters

    Imposed the pressure on mattress by a transducer, pressure range to 300KG

    Adjust the pushrod stroke on mattress , maximum force = 1025N minimum force = 22N

    Pusher travel speed adjustable, about 160 weeks times per minute

     Suitable maximum specimen  2.2M ×2.2M
     Display Accuracy  0.001kgf
     Deformation precision  0.001mm
     Impact height  0-300mm adjustable
     Counter range  0-99999 times
     Machine size  (L×W×H) about 3000×2800×2500mm
     Weight   about 650Kg

    Mattress Testing Machine operation video link:


    What is horizontal scroll?

    What is horizontal scrolling? Horizontal scrolling is a page navigation method in which the user scrolls left and right to reveal content from the sides of the window or container

    How long does a mattress really last?

    between 7 and 10 years

    Most mattresses should last between 7 and 10 years. However, there are many variables that can influence mattress lifespan. The original build quality of the mattress, the materials used, and even the weight and sleeping styles of the sleepers can all influence a bed's longevity

    What happens to a mattress after 10 years?

    One frightening statistic: The average mattress will double its weight in 10 years as a result of being filled with dead dust mites and their detritus
