- Site：Home > Toys Safety Testing Equipment > EN71-8,ISO8124-4 > Barriers and Handrails Dynamic Strength Testing Machine
- Product Images
- detailed description

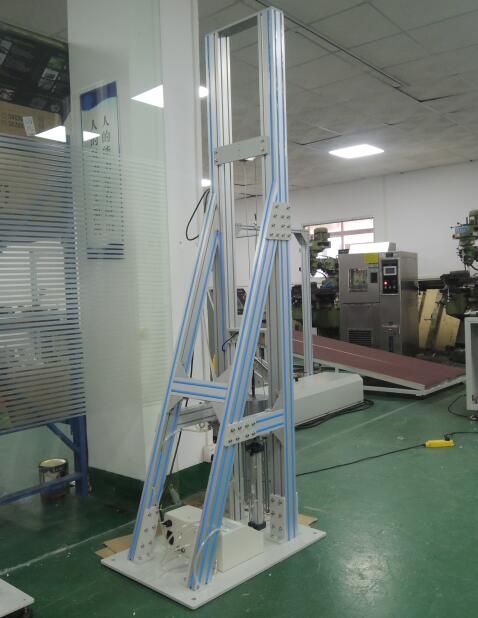

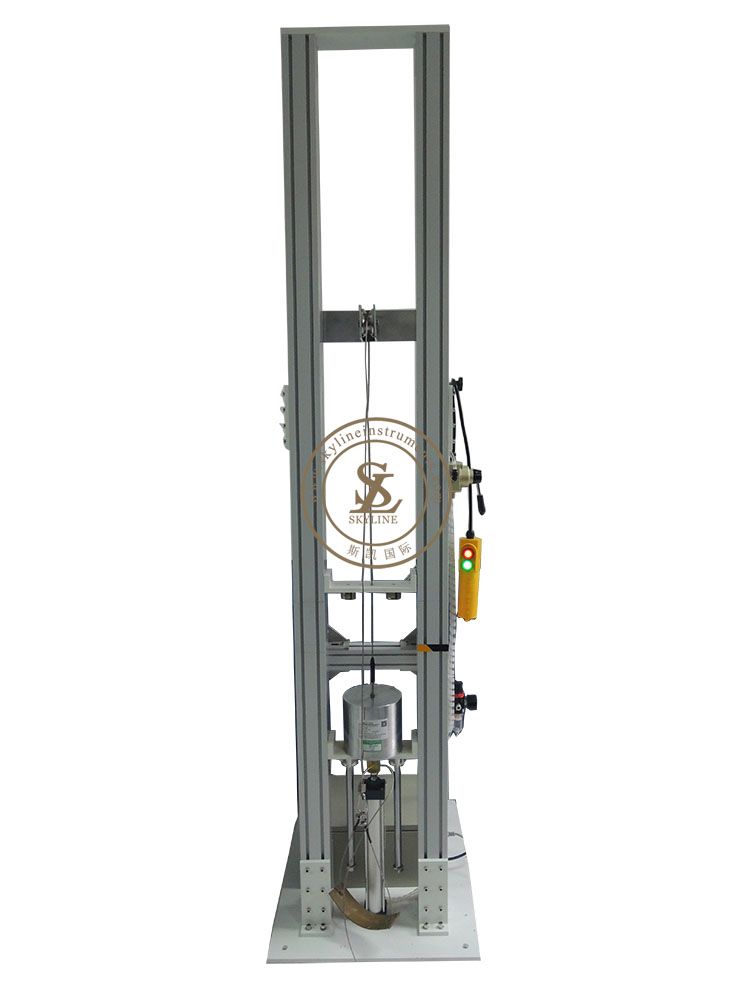

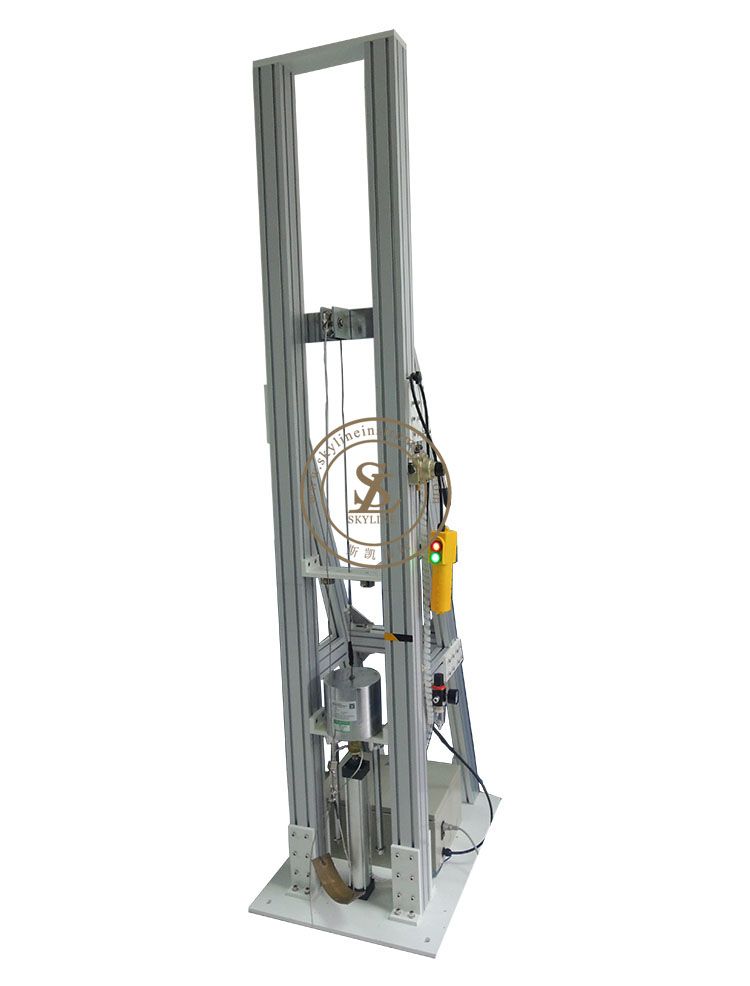

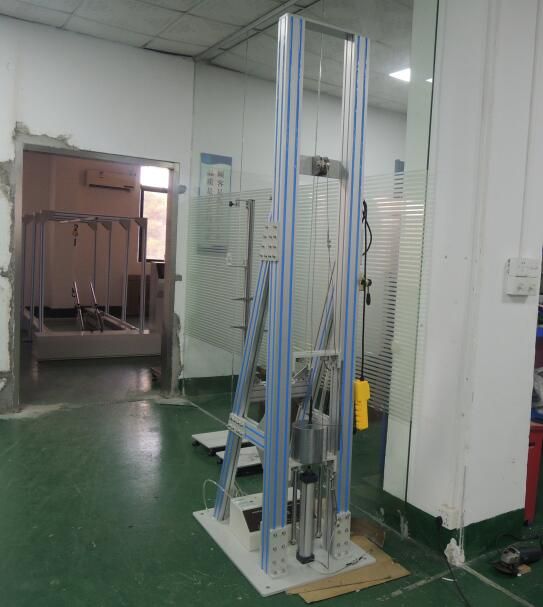

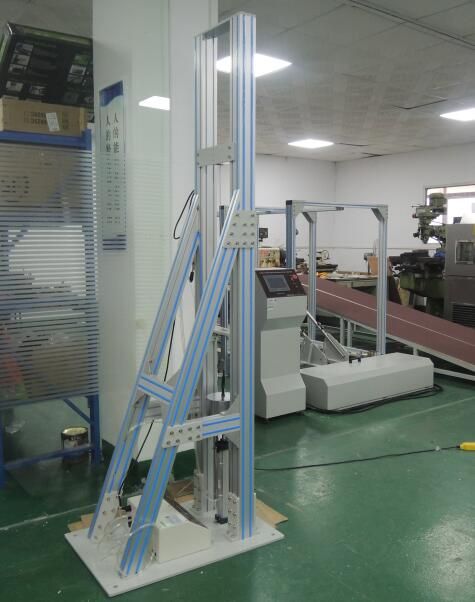

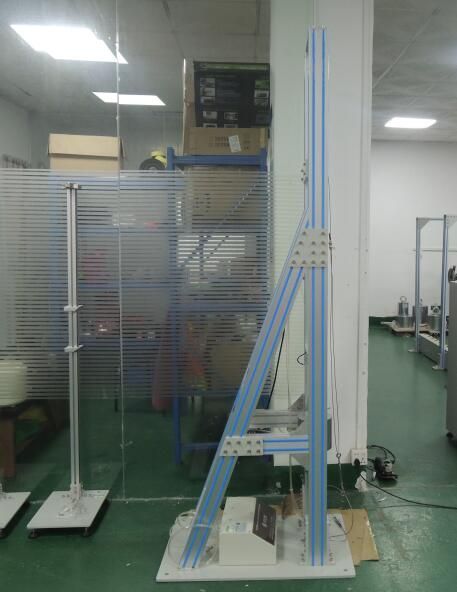

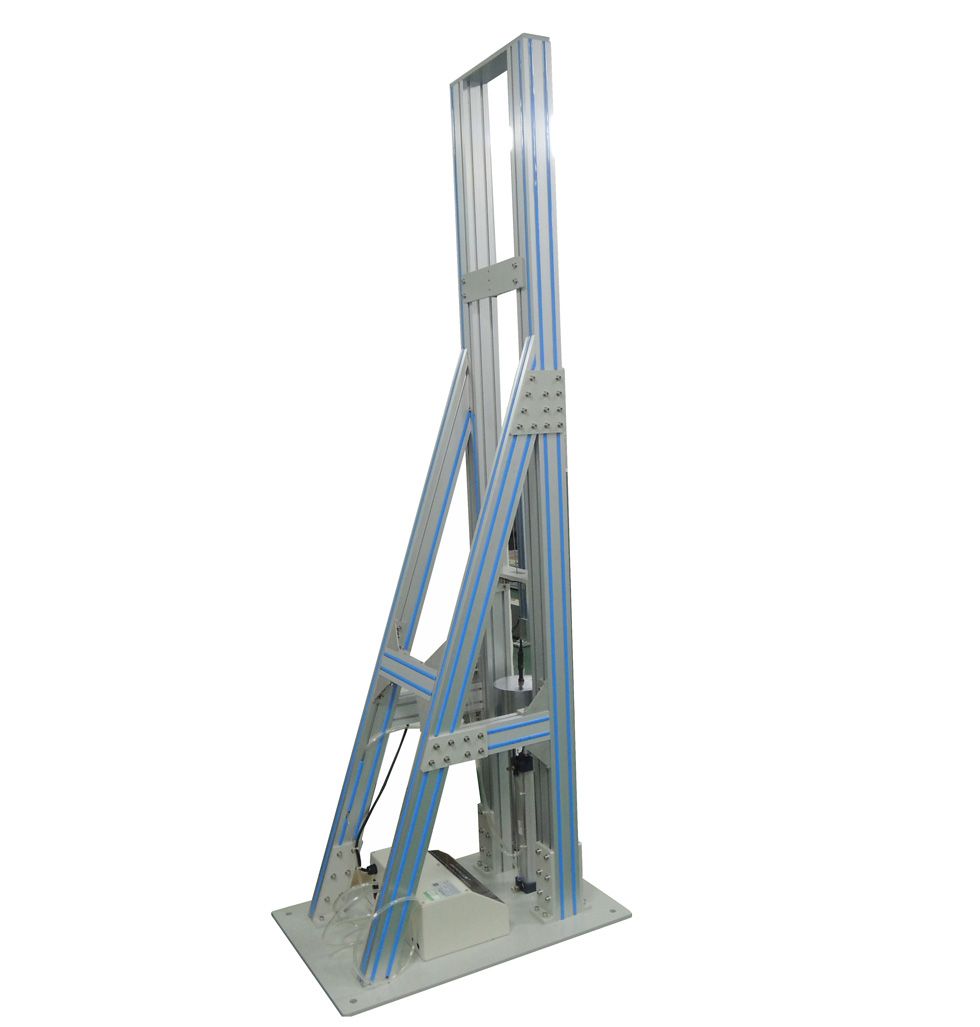

Barriers and Handrails Dynamic Strength Testing Machine
Application
A sudden horizontal impact stress is applied to the barrier or handrail, through a pad, by a falling load.
Technical parameters
Determine of the dynamic strength of barries and handrails.
Load 25+/-1kg Drop Height 125+/-10mm Impact method free fall Impact Forec 30J Sample height 90-240cm Weight approx 140kg
Standards
EN 71-8 clause 6.4, ISO 8124-4 6.3
Procedure
Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal surface.
Place and secure the pad to the top of the barrier or handrail at the most onerous position and without causing any damage to the toy. Attach the free end of the rope to the pad.
Arrange the rope and the pulley so that the load hangs freely. Raise the load vertically 125 mm ± 10 mm and let it drop freely (this will give an impact energy of approximately 30 J). Within 10 s, remove all tension from the barrier.
Observe whether the toy still complies with the relevant requirements of this part of ISO 8124.
