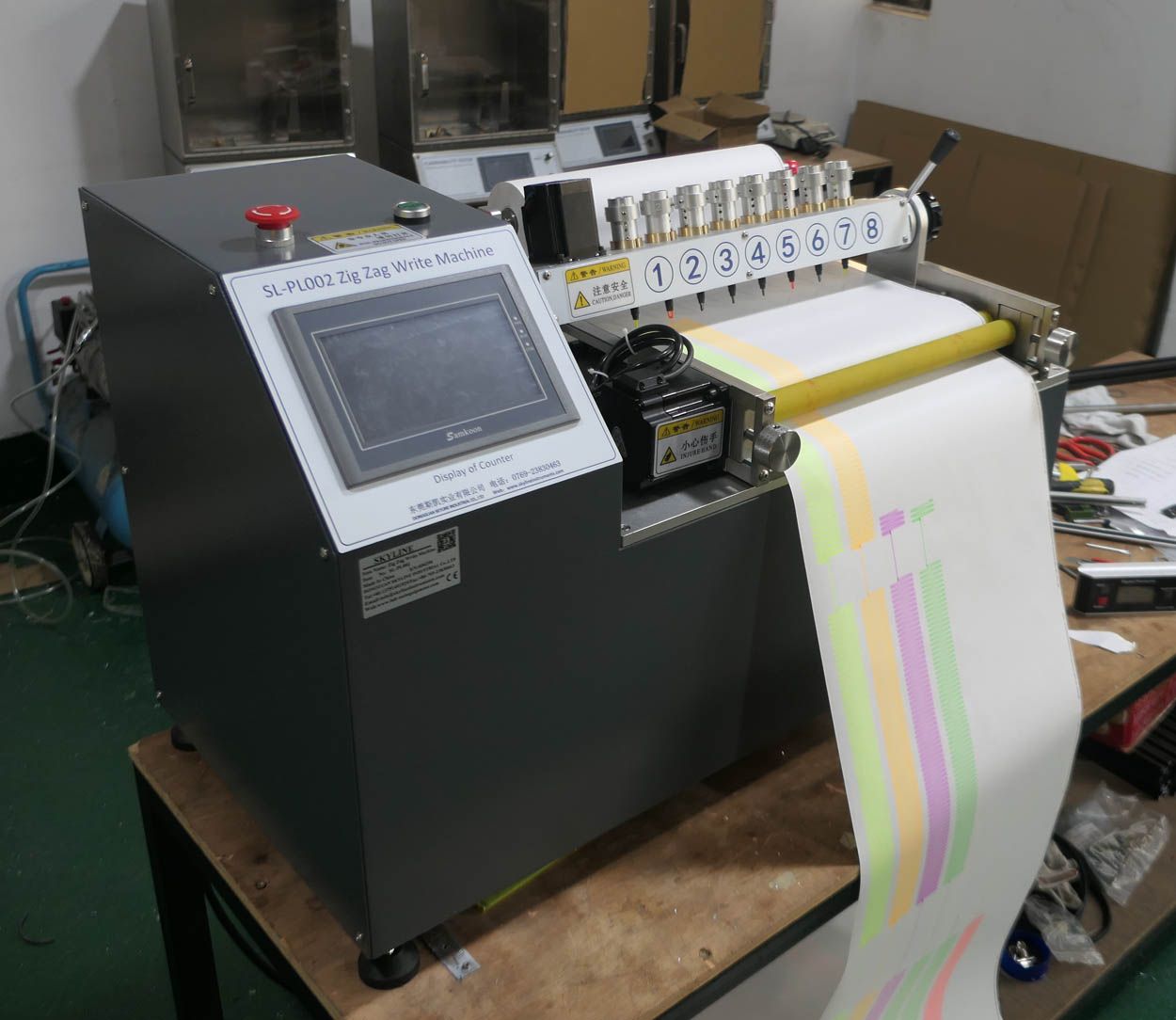

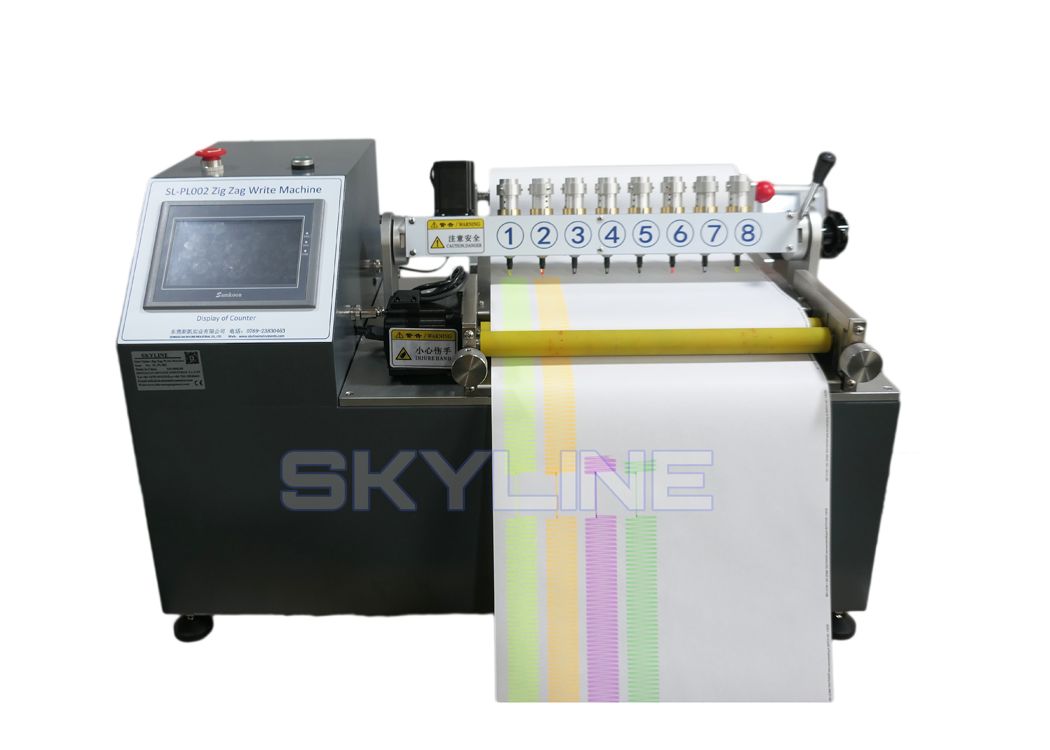

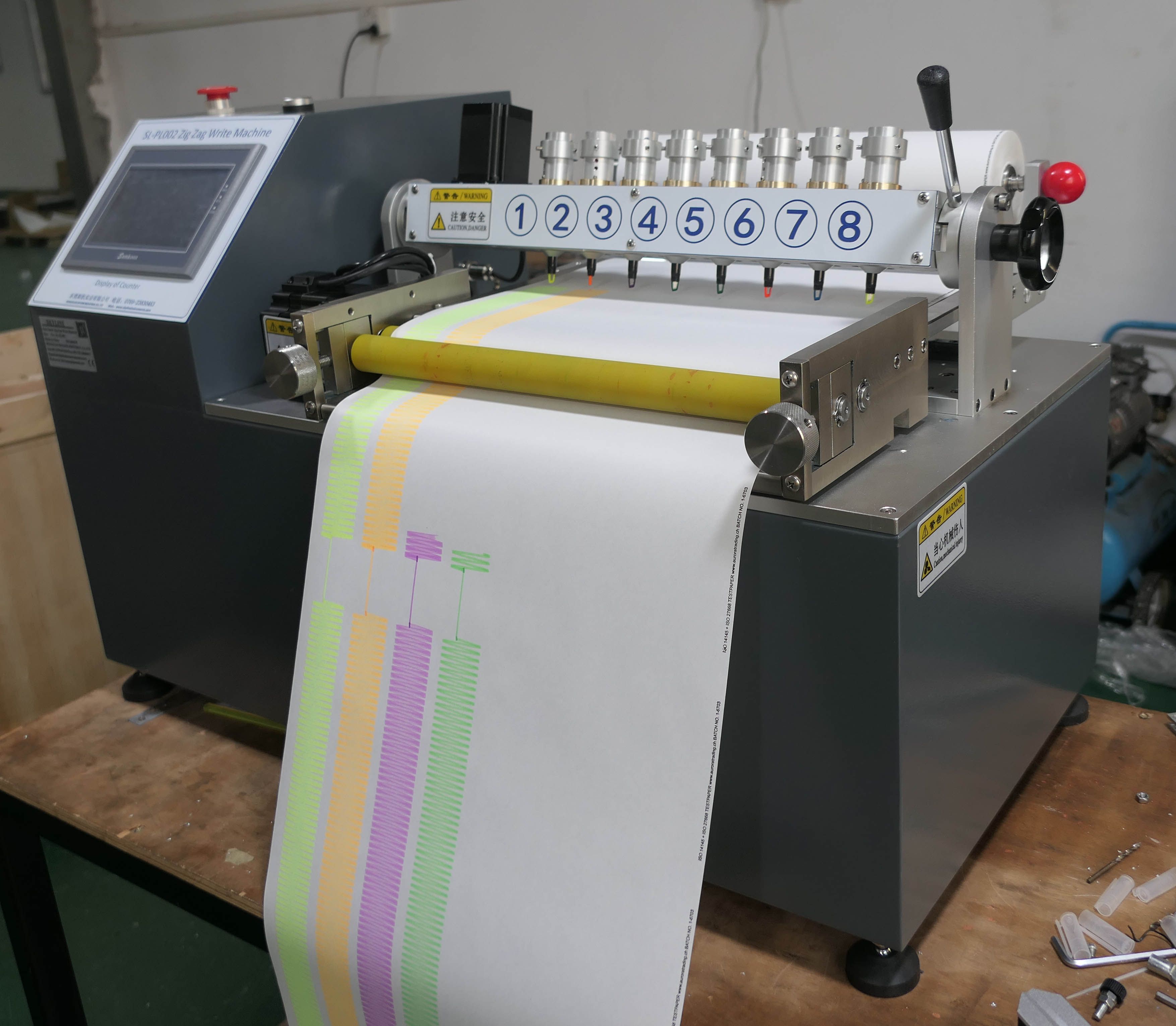

Lab Testing Equipmen Zig Zag Writing Testing Machine
Application
This machine is used to detect the refill of a pen, and draw a Z shape at a certain speed to check whether the stitching meets the performance required by Article 3.6 of ISO27668-1.
Principle
This machine simulates the state of writing with a pen, puts the sample on a certain load and makes it write a Z mark at a certain speed, and checks the structure and performance of the sample.
According to the standard
This tester is made with reference to the requirements of Article 3.6 of ISO27668-1.
Technical parameters
Sample | Writing pen |
Load weight weight | 50g+/-0.5g |
Maximum sample diameter | ≤φ24mm |

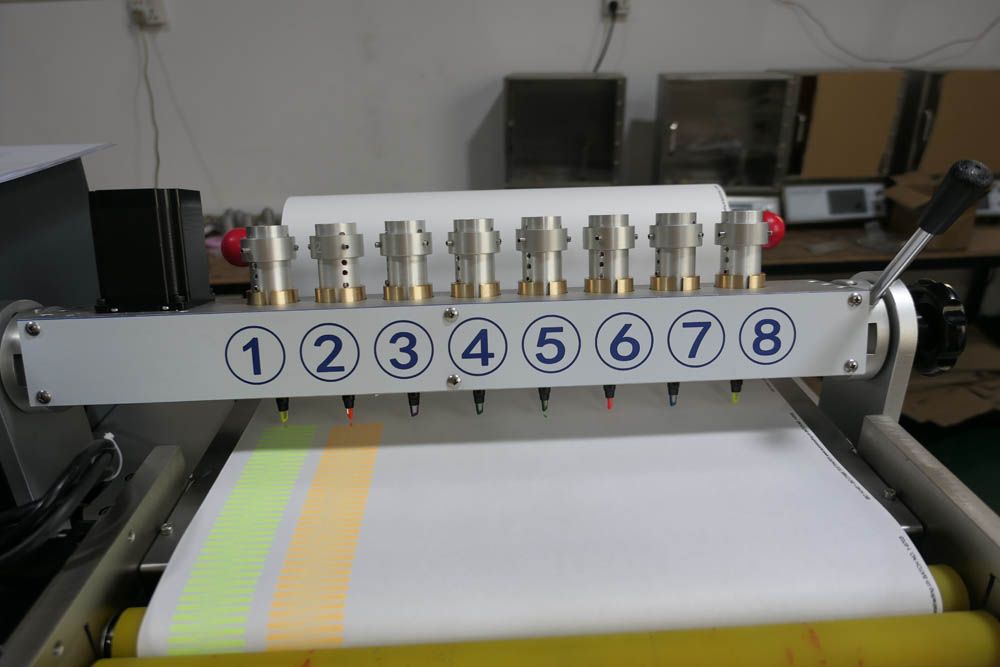

Number of samples | 8 pcs/time |
Sample single stroke / full stroke | 1.375 inches/2.75 inches |
Writing speed | 1.0m/min-10.0m/min adjustable |
Refill Rotation speed | 0.1-3.0 revolutions/min adjustable |
Line spacing between 1mm and 5mm | 1.0mm-10.0mm adjustable |
Writing angle | 60°~90° adjustable |
Volume (WxDxH) | Host: 90x45x60cm |
Weight | ≈100Kg |
Power Supply | 220V, 20A |
