- Site：Home > Furniture Testing Machine > Chair Testing Machine > SL-T01 Chair Armrest Testing Machine
- Product Images
- detailed description

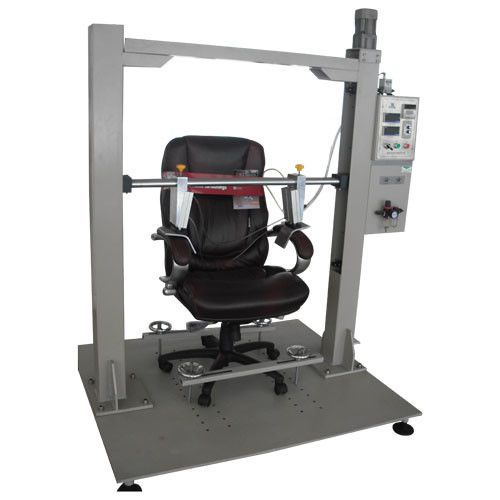

Chair Armrest Durability Tester
Product information
Chair Armrest Testing Machine is used to evaluate the pull-resistance ability of the armrest at parallel direction, to determine its fatigue life under parallel strength. Fix the caster, set the time, and pulling strength and time for automatically reposition.
Technical parameters
Parameter Specification Model SL-T01 Applicable Standards ANSI/BIFMA X5.1-2011 clause 11.4 / EN 1728:2012 / EN 1335-3 Armrest Height Range 600 – 820 mm, motorized adjustment Rated Load Capacity 200 kg vertical static and cyclic load Test Cylinder Capacity 2 × 5 kN pneumatic cylinders, individually controlled Test Stroke 0 – 150 mm adjustable Test Frequency 10 – 30 cycles per minute Cycle Counter 0 – 9,999,999 cycles with automatic stop Force Display Accuracy ±1 % of full scale Control System PLC + 7-inch color HMI, 100 recipe storage Frame Structure 80 × 80 × 4 mm welded square steel tube, powder coated Machine Weight 480 kg Power Supply AC 220 V, 50/60 Hz, single phase
Standards- EN1335-3 2009 5.7
- ANSI/BIFMA X5.1-2011 11.4 Front Corner Load-Ease Test-Cyclic–Off-center
- ANSI/BIFMA X5.1-2011 20 Footrest Durability Test-Vertical-Cyclic
- ANSI/BIFMA X5.1-2011 21 Arm Durability Test - Cyclic
