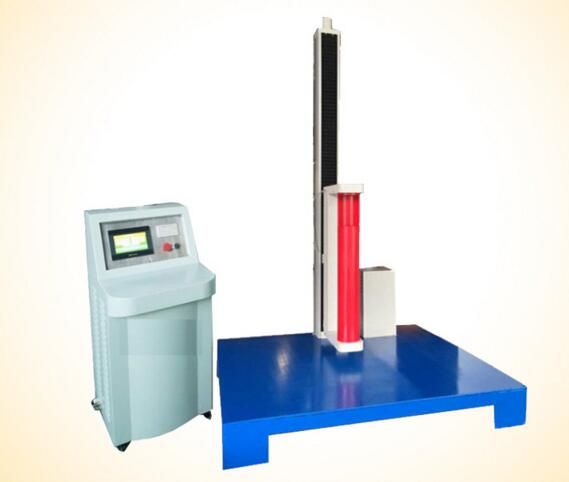

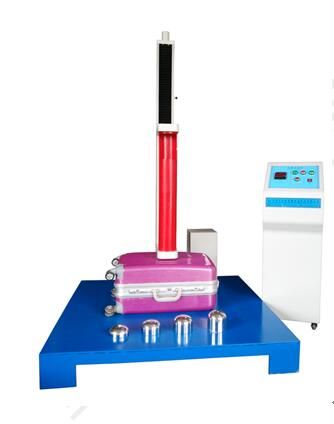

    Luggage Drop Hammer Impact Testing Machine

  • detailed description
  • Luggage Drop Hammer Impact Testing Machine



    Application

    This product is suitable for the impact test of materials such as molded bags. The instrument is adjusted to a certain height with the impact head of the specified weight, so that it can fall freely and hit the sample, depending on the degree of damage.


    Test standard

    This instrument complies with JIS-K6745, A5430, QB/T 2918-2007 test standards.


    Technical parameters

     Maximum height  1500mm
     Falling ball control method  DC electromagnetic control
     Impact head weight  2000g, 3000g, 4000g, 50000g each
     Impact head size  cylindrical diameter 100±2mm, bottom radius 50±2mm
     Machine size  (L × W × H) 120cm × 120cm × 210cm
     Impact height  700±10mm
     Falling method  free fall
     Weight  about 80kg
     Power Supply  1∮, AC 220V 2A


    With anti-secondary impact device to ensure the damage caused by the secondary impact on the sample after the impact rebound.
