  • Site:Home > Luggage Test Machine > Luggage Handle Fatigue Tester
  • Product Images

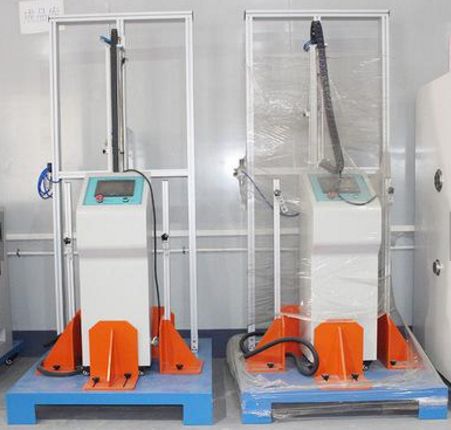

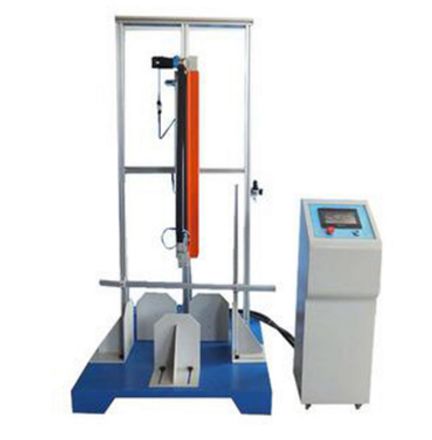

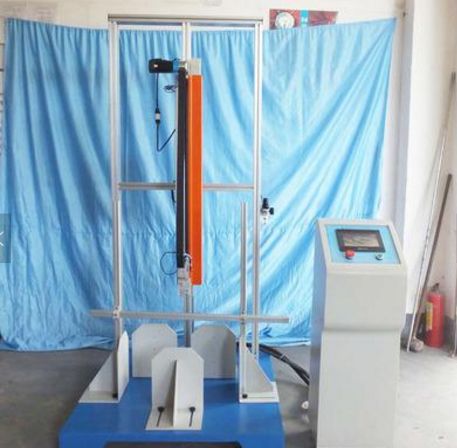

  • Luggage Handle Fatigue Tester

    Luggage Handle Fatigue Tester

    Luggage Handle Fatigue Tester

  • detailed description
  • Luggage Handle Fatigue Tester



    Product description

    Brief introduction of the luggage pull rod reciprocating fatigue tester This machine bench makes the reciprocating fatigue test for the drawbar of the luggage. At a certain pull-out and lamination frequency, the reciprocating fatigue performance of the pull rod is tested by continuously switching, reciprocally pulling, and pressing the drawbar locks and pull rods of the luggage, thereby testing the gap, looseness, and connection of the pull rods. Rod failure, deformation and so on.



    Design standards

    QB/T2919-2007 bag pull rod reciprocating fatigue test method



    Technical Parameters

     Machine frame  Made of high-strength aluminum alloy
     Test position  Adjustable
     Test stroke  20~100cm adjustable
     Stretching speed  0~30cm/sec adjustable
     Compression speed  0~30cm/sec adjustable
     Test times  1~999999. Automatic shutdown
     Test power  pneumatic cylinder
     Specimen height  up to 100cm
     Auxiliary Equipment  Fixed Clamping Base (Adjustable)
     Use pressure  5~8Kg/cm2
     Machine size  (L×W×H)120×120×210cm
     Weight  150Kg
     Power Supply  220V/50Hz
