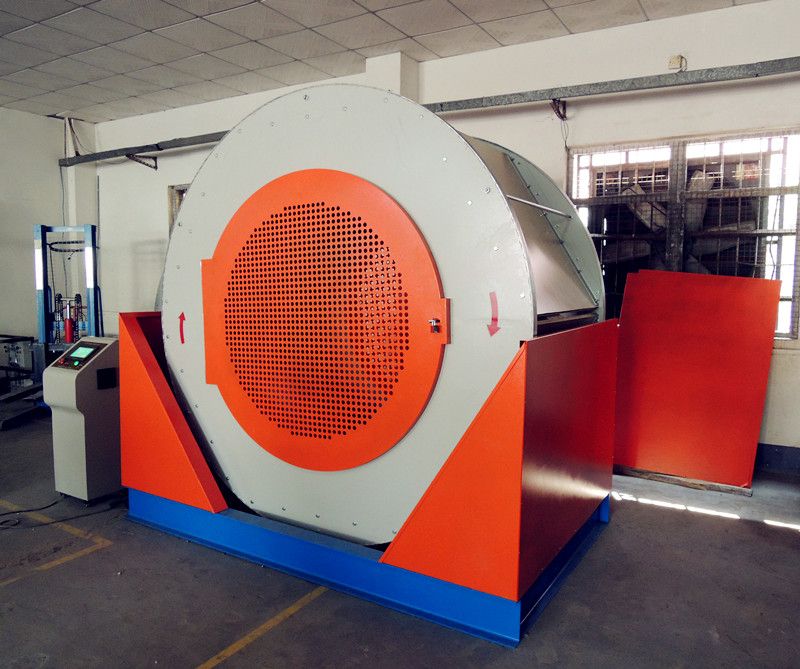

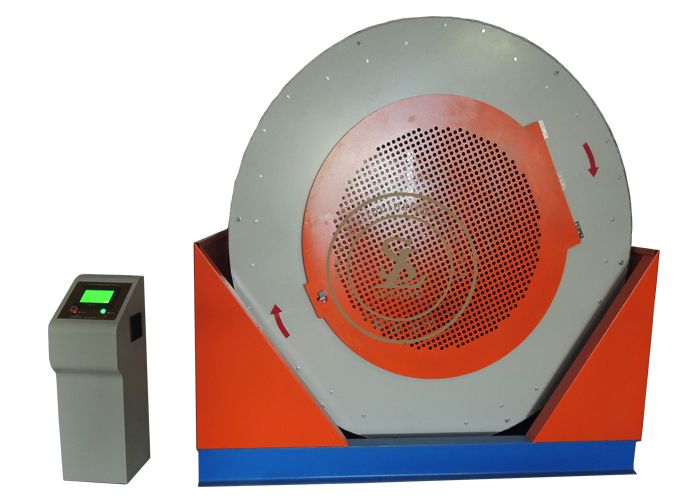

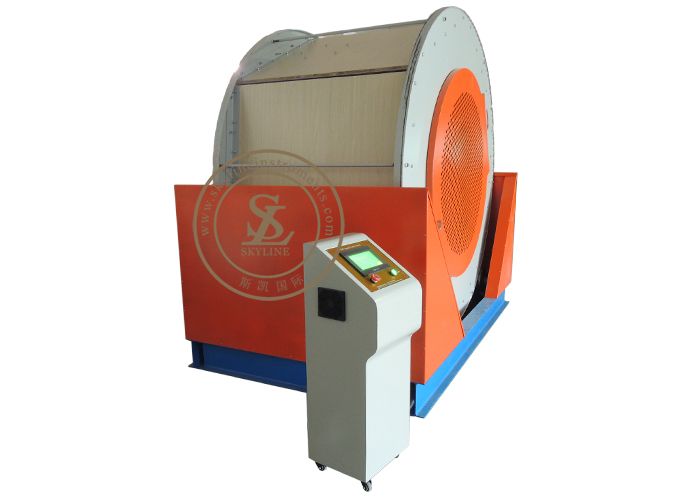

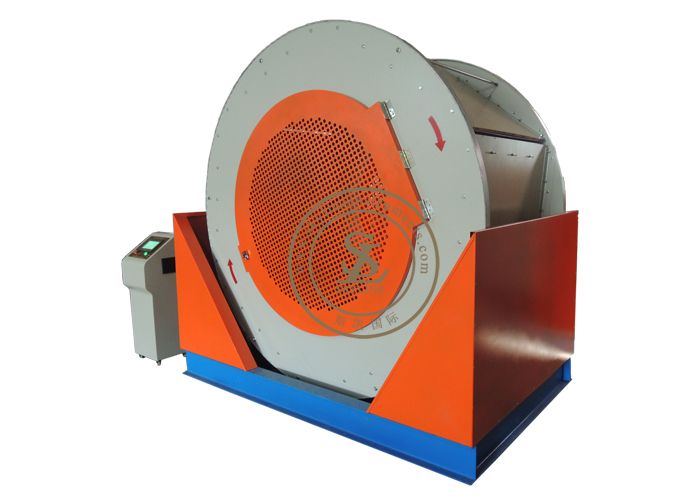

SL-TL04 Luggage Tumble Tester
Application
When the product is moved or transported, it may fall down causing damage to the internal product. Before the damage is prevented, the machine can be used to anticipate testing so as to find the best solution so as to minimize the amount of the product loss during transportation.
Features
Professional suitcase roller Measuring Machine applies to damage test of luggage and package by simulating the transport process,such as dropping,impacting,rolling;in order to inspect the protecting ability toward the luggage and its inner things.And the result can be the reference of improvement.
Technical parameters
Roller diameter and depth 72 inch Depth 48 inch Roller speed 1.62 r.m.p Obstacles specification 60degrees obstacles 3 groups Sample size 1000×700×400mm Counter LCD display, 0-99999999 can be set Machine size 2400×2100×2350mm Weight 3860kg Power Supply AC380V Design criteria QB/T2902-2007 Please review the Luggage Tumble Tester operation video link:
https://youtu.be/AY1JYFz5W0g
https://youtu.be/gxu-cjZAxIY
