  • Site:Home > Luggage Test Machine > Luggage Drop Test Machine
  • Product Images
  • Luggage Drop Test Machine

  • detailed description

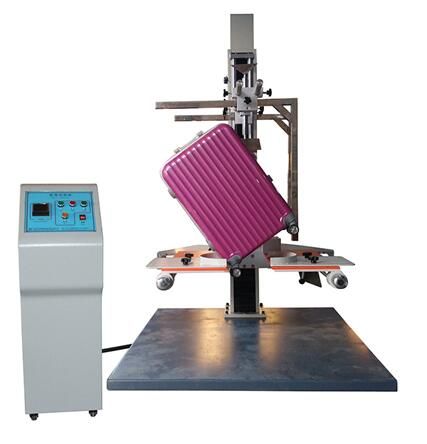

  • Luggage Drop Test Machine



    Product Introduction

    This series of drop test machine adopts double column direction, spring buffer and height scale indication, and the work is stable and reliable. It is equipped with a professional drop clamp for luggage, which can achieve edge, face and corner drop. During the process of moving or transporting, the product may be damaged and the internal product may be damaged. If the damage is prevented in advance, the machine can be used to test the expected result, so as to obtain the best solution, so as to minimize the transportation process. loss.


    Standard

    QBT 2921-2007 luggage drop test method, QBT 2155-2010 travel luggage.


    Technical parameters

     Drop height  450~1500mm
     Display mode  height ruler
     Maximum weight of test piece  60kg
     Maximum size of test piece  (L × W × H) 800 × 1000 × 800mm
     Drop panel area  (W × L) 1200 × 1400mm
     Single wing area  (W × L) 350 × 760mm
     Power supply  1∮, AC220V, 50Hz, 1/2P
     Weight (approx.)  about 420kg
     Dimensions (L × W × H)  1400 × 1200 × 2140mm
