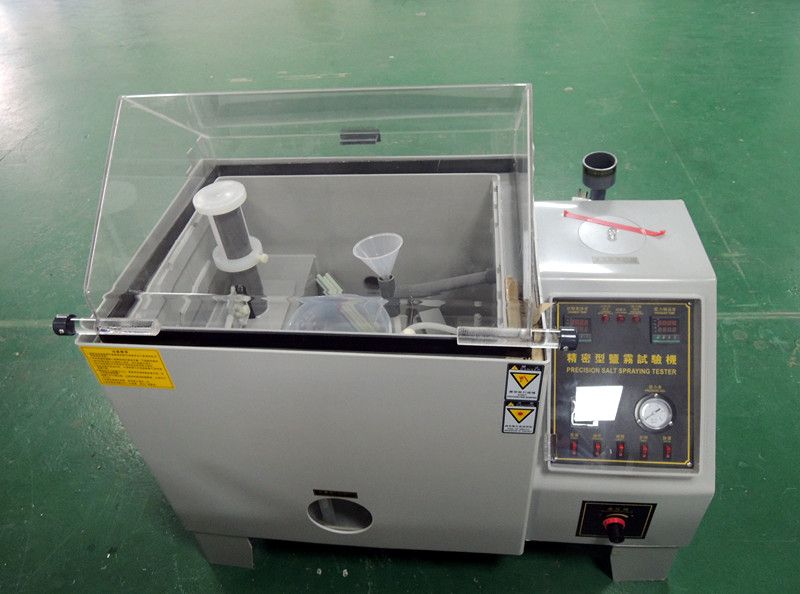

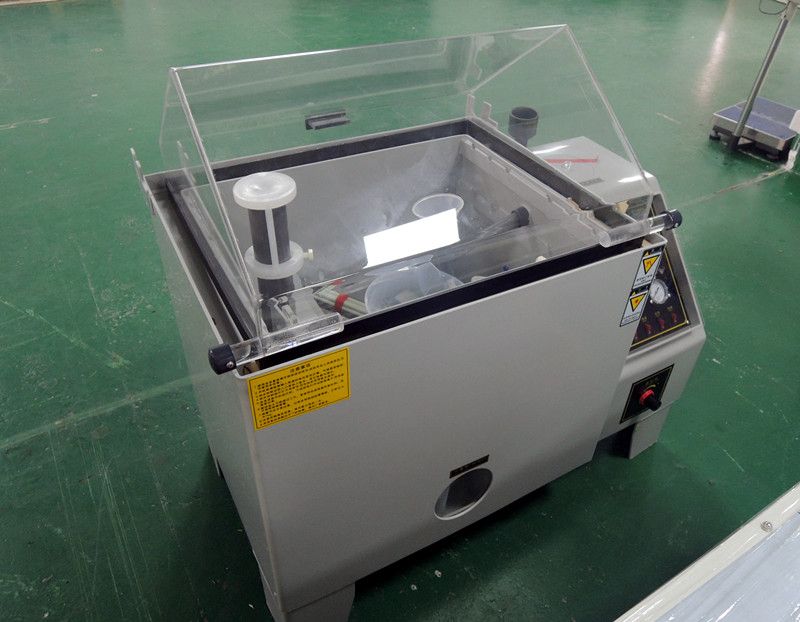

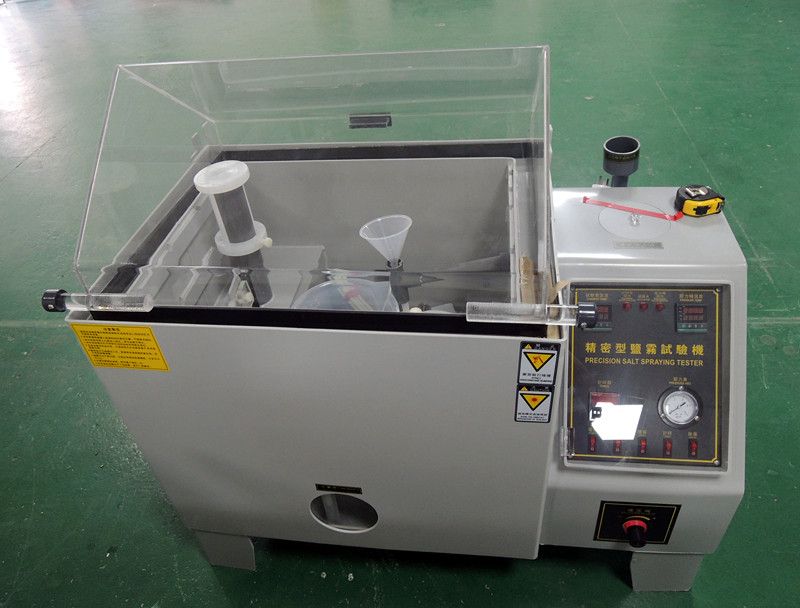

  • 110L PVC Salt Spray Test Equipment

    110L PVC Salt Spray Test Equipment

    110L PVC Salt Spray Test Equipment

    110L PVC Salt Spray Test Equipment

  • detailed description
  • 110L PVC Salt Spray Test Chamber Environmental Test Chamber



    Application

    The Salt Spray Chamber are specialized to test the performance of the products for its surface of various materials after treatment of corrosive protection by means of painting, coating, galvanizing, anodizing and of lubricant.

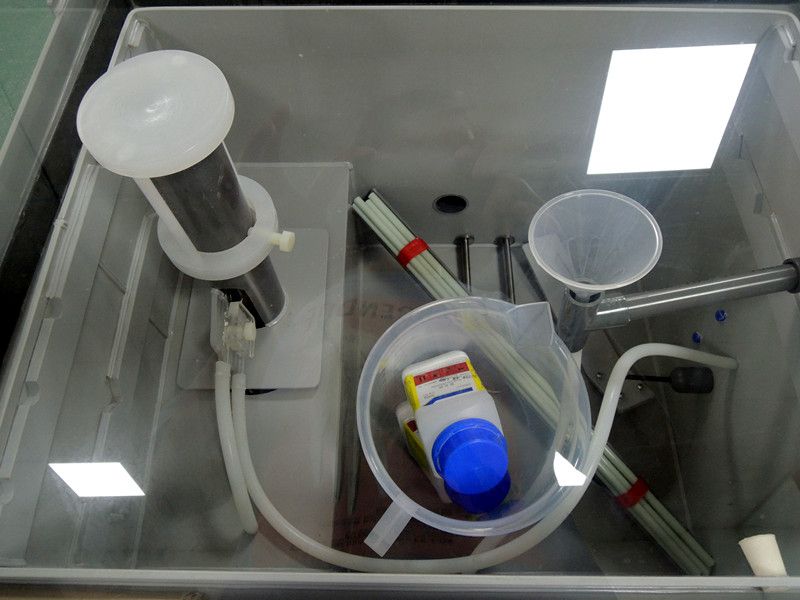

    Material
    1) Laboratory using PVC sheet, thickness 5 mm, the temperature reaches 80 degree Celsius;
    2) Laboratory closure with high impact acrylic sheet, 6 mm thick;
    3) Supplementary bottles of reagents attached to the water level perspective with hidden windows, clean easy, not easy to break;
    4) Saturated air barrel using SUS #304 stainless steel barrel high pressure barrel insulation is best;
    5) Laboratory basketball adopt flat indexing frame, adjustable angle, surrounded by mist side down exactly the same place the large number of test pieces
    Salt spray test NSS,ACSS
    laboratory 35℃±1℃
    Saturated air drums 47℃±1℃
    Corrosion test NSS.ACSS
    laboratory 50℃±1℃
    Saturated air drums 63℃±1℃
    Comply to international standards: CNS3627, 3885, 4159, 7669, 8886, JIS Do201, H8502, H8610, K5400, Z2371, ISO3768, 3769, 3770, 9227, ASTM B117, B268



    Specifications

     Inside box size(cm)  60x45x40  90x60x50  120x80x50
     Outside box size(cm)  113*107*63  146*128*91  224*150*160
     Testing room temperature  Salt test (NSS ACSS)35±1 degree / Corrosion Test (CASS)50±1 degree
     Pressure barrel temperature  Salt test (NSS ACSS)47±1 degree / Corrosion Test (CASS)63±1 degree
     Brine temperature  35±1 degree or 50±1 degree
     Testing room Capacity  108L  270L  800L
     Brine tank capacity  15L  25L  40L
     Salt concentration  The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)
     Air pressure  1.00±0.01kgf/cm2
     Spray volume  1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)
     Testing room relative humidity  85% above
     PH  6.5~7.2 3.0~3.2
     Spray form  Programmable spray (Including continuous and intermittent spray)
     Power  AC220V1Φ10A AC220V1Φ15A AC220V1Φ20A



    Professional Environmental Test Chamber 110L PVC Salt Spray Test Equipment
