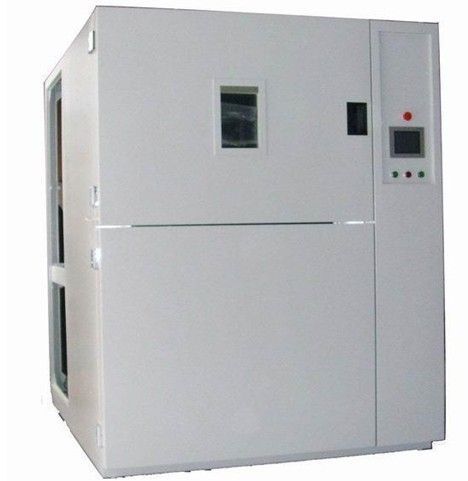

Programmable Water Cooled Thermal Shock Test Chamber With Touch Panel Control
Product introduction
Thermal shock test chamber is divided into three sections: the high temperature chamber, the low temperature chamber and the testing chamber.
The color touch panel control system was made in Japan can display Chinese / English. The big size liquid-crystal LCD has been adopted.
High formula memory capacity may be set to 120 patterns. The maximum cycle setting is 9999cycles. The maximum setting of each section is 999 Hrs 59 Mins.
Provide with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.
Both 2 zone and 3 zone shocks can be chosen.All equipment is fully automatic, and all process are precisely controlled with P.L.C.’S.
Of any part of the malfunctions, the machine will automatically shuts down and a warning light switches on.Machine can be shut down automatically in case of electrical power instabilities.
Technical Parameters
Internal Dimension
(W×H×D)50×50×50 cm
Structure
Two chambers design(the hot chamber or the cold chamber)
Damper device
Forced air drive damper
Interior material
SUS# Stainless steel plate
Exterior material
SUS# Stainless steel plate
Basket material
SUS# Stainless steel plate
Refrigeration
Cascade refrigeration system
Cooling method
Water
Ambient temperature
0°~30°
Preheating temperature
above freezing60.00°C~above freezing200.00°C
Pre-cooling temperature
subzero 10.00°~ subzero 70.00°C
H.T. Shocking
Above freezing 60.00°C~above freezing 150.00°C
L.T. Shocking
subzero 10.00°C~subzero 65.00°C
Temperature uniformity
±2.00°C
Simulated load ic 5.0kg
HT IN-Zone subzero 65.00°C~above freezing 150.00°C/5min
LT IN-Zone above freezing 150.00°C subzero 65.00°C
Preheating time
45MIN
Pre-cooling time
75MIN
Senor
T×4
Setting range
Temperature:subzero 100.00°C~above freezing 200.00°C/TIME:OHIM~999H/CYCLE:0 ~9999
Resolution
Temperature:0.1°C
Output mode
PID and SSR(control method)
Power(K.W)
23
