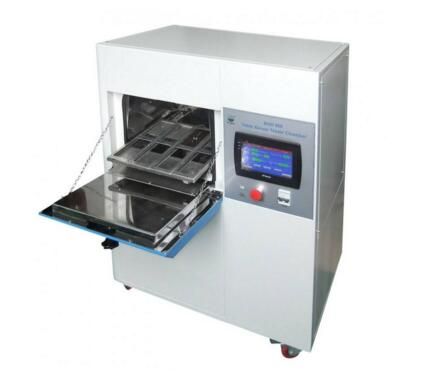

  • Professional Environmental Test Chamber UV Lamp Tester

  • detailed description
  • Professional Environmental Test Chamber UV Lamp Tester


    Product Introduction

    (UV), which is used to control the damage of the material, such as discoloration, brightness, strength, cracking, peeling, pulverization, oxidation, etc., in combination with temperature, High temperature, high humidity, condensation, dark rain cycle and other factors, while the synergies between ultraviolet light and moisture makes the material a single light resistance or a single ability to reduce or failure of wet resistance, which is widely used for material resistance Climate performance evaluation, equipment has to provide the best sun UV simulation, the use of low maintenance costs, easy to use, the equipment used to control the automatic operation, the test cycle of high degree of automation, light stability, test results, high reproducibility.



    Structural material

     Test chamber space  450 × 1170 × 500mm
     Dimensions  550 × 1300 × 1480mm
     Unit material  304 stainless steel inside and outside
     The sample rack  aluminum frame frame as the board
     Control device  RKC intelligent controller
     Irradiation tube  UVA-340 8 each side of a total of 4 sides
     Power leakage circuit breaker control   circuit overload short-circuit alarm, over-temperature alarm, water protection


    Technical Parameters

     The temperature range  RT +10 ℃ ~ 70 ℃
     The humidity range  ≥ 90% RH
     The temperature uniformity  ± 1 ℃
     The temperature fluctuation  ± 0.5 ℃
     The center distance of the lamp  70mm
     The distance between the test object and the lamp 50 ± 3mm
      Irradiance  1.0W / m2 adjustable
     Light, condensation, spray test cycle adjustable
     Lamp  L = 1200 / 40W, 8 (UVA service life of more than 2000h)
     The controller  RKC intelligent controller
     Temperature control mode  PID self-integer SSR control
     The standard specimen size  75 × 290 × 120mm (special specifications need to be described in the contract)
     Sink water depth  25mm automatic control
     Effective irradiation area  900 × 210mm
     UV wavelength  UVA range of 315-400nm
      Test time  0 ~ 999H (adjustable)
     Irradiation blackboard temperature  50 ℃ ~ 70 ℃
     Tstandard sample rack  24 pay
     The unit has   an automatic sprinkler function
