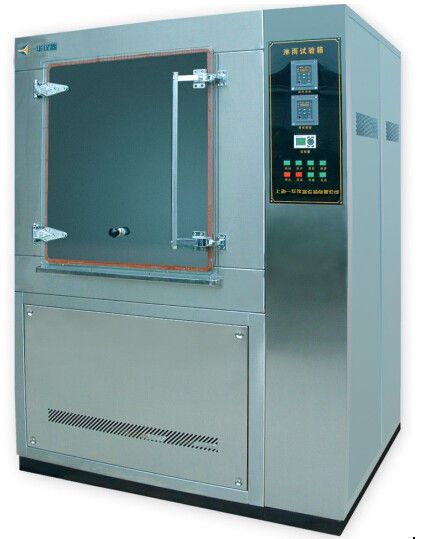

Box Type IEC60529 IPX3 and IPX4 Oscillating Tubes Rain Test Equipment
Product Introduction
The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.
Specification
Swing pipe size (mm)
R200
R400
R600
External dimensions (mm)
L500*D500*H500mm
L900*D900*H900mm
L1300*D1300*H1300mm
Outer size(mm)
L1000*D680*H1440mm
L1400*D1080*H1900mm
L1740*D1480*H1950mm
Flow (L / mm))
0-1L/Min
0-2L/Min
0-3L/Min
Turntable Size (mm)
￠200
￠400(can add ￠200)
￠600(can add ￠400,￠200)
Turntable height adjustable range
150-250 mm
350-600mm
550-1000mm
Spray aperture diameter (mm)
0.4
swing pipe inner diameter(mm)
15
Swing angle
120°(IPX3), 350°(IPX4), or customize
Swing speed
120°(to and fro) 4S,360°(to and fro)
12S(accurate control)or customize
Swing pipe material
SUS304 stainless steel
Turntable speed
1-5r/min(accurate control)
protective device
Leakage, water shortage, short circuit
Power supply (V)
200V
Power(KW)
1
Standards compliant
IEC60529:1989+A1:1999(IPX3 IPX4)
Features
1.Boy type, circulating water
2.Accurate flow adjustable
3.Sample electrifying test
4.Connected WIFI operation
5.Imported electrical components
