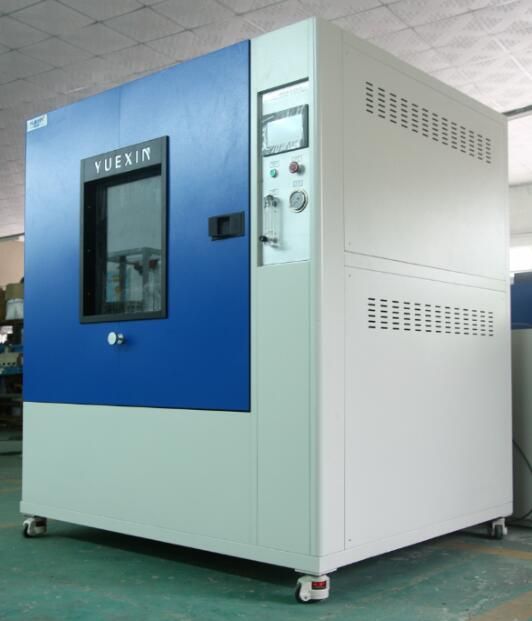

Touch Screen Water Spray Test Chamber For External Lighting / Signal Device
Application
Mainly used in electronic electrician, aerospace, military scientific research institutions, such as external lighting, signal device and vehicle lamps shell protection test.
Standards
GB 4208-2008 IPX4/IEC 529

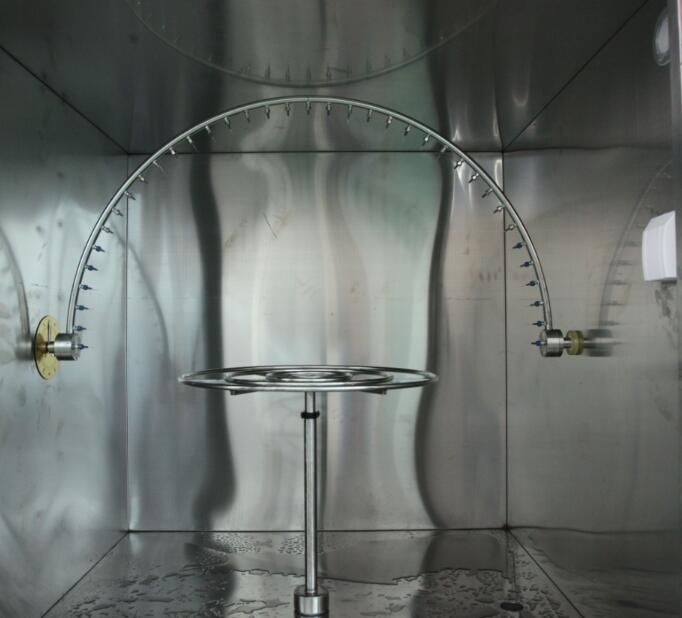

Technical parametersSpray ring radius
235 (mm)
Water pipe diameter
Φ16mm
Nozzle diamete
Φ0.4mm
Aperture spacing
50mm
Swing swing
± 45 degrees, ± 60 degrees, ± 90 degrees, ± 180 degrees (theoretical value)

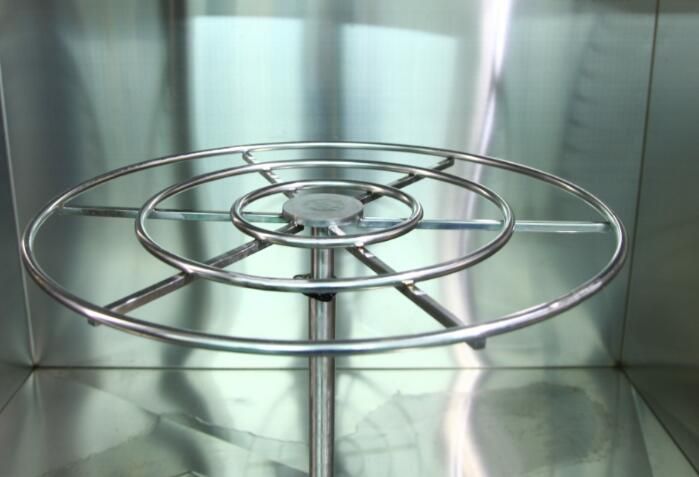

Test bench speed 1r / min can also be no section speed (optional)
The controller imports the frequency modulation frequency changer
Time Controller Import Microcomputer Time Programmable Integrated
Controller (Admiralty Moeller)
Water pressure control flowmeter
Observation area Large area visualized tempered glass door
Water supply system storage tank, booster pump
Safety protection leakage, short circuit, motor overheating
