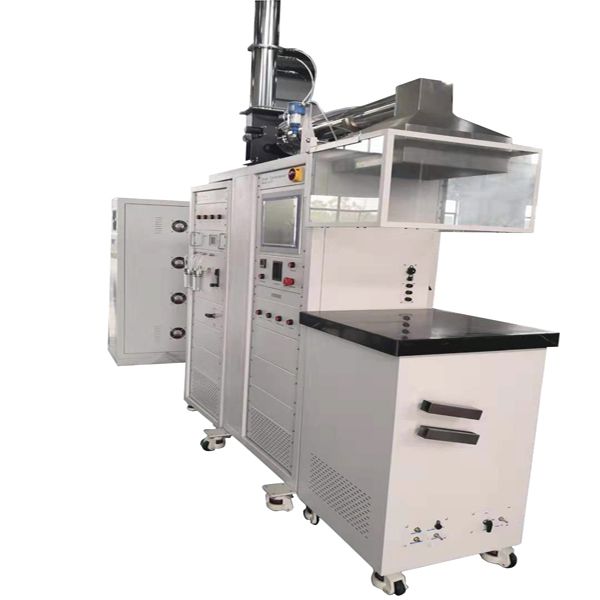

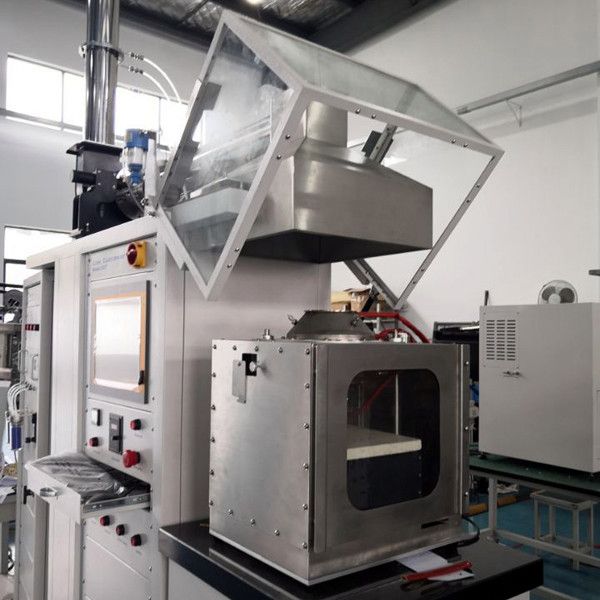

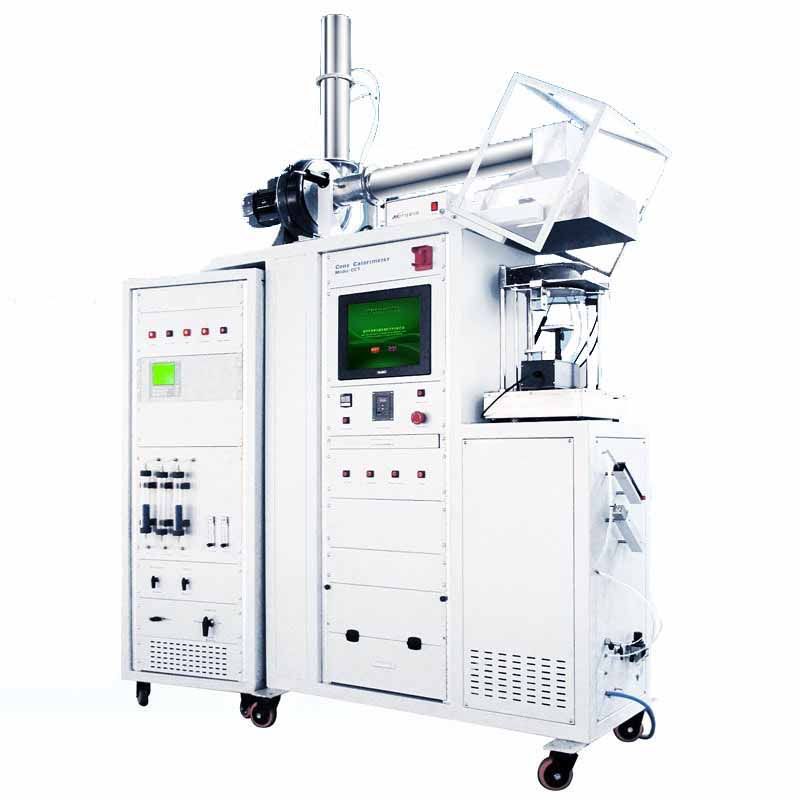

Cone Calorimeter for Testing the Heat Release Rate

Application

Suitable for testing the heat release rate of building materials.

Cone Calorimeter measures heat release rate(H.R.R), smoke release, ignition time, oxygen consumption, carbon monoxide and carbon dioxide generation and mass loss rate when specimen is exposed to resource of conical heater.

Standard

ISO5660-1:2002

Technical parameters

Main Feature
1. The test result data of SZL-1 cone calorimeter includes the following:
a. ignition time
b. Average heat release rate within 180s after ignition for 180s
c. total heat release (mj/m2)
d. Initial mass and residual mass (Kg) of the sample
2. f Average mass loss (kg/s) after ignition to the end of the test
g. Radiation intensity (KW/M2) and displacement (m3/s)
h. heat release rate - time curve
i  smoke release rate (optional)
j  Toxic gas (carbon monoxide, carbon dioxide) (optional) generation rate (optional)
High voltage spark generator: automatic positioning ignition
Modular combination of equipment: Users can select the standard configuration according to the actual application;
Equipment dimensions: Length × Width × Height (1.68 × 0.686 × 1.92) m;
Equipment weight: 350 Kg.
