- Site：Home > Cables Flammability Testing Equipment > Photocell Sensor Wires & Cables Smoke Density Test Room
- Product Images
- detailed description

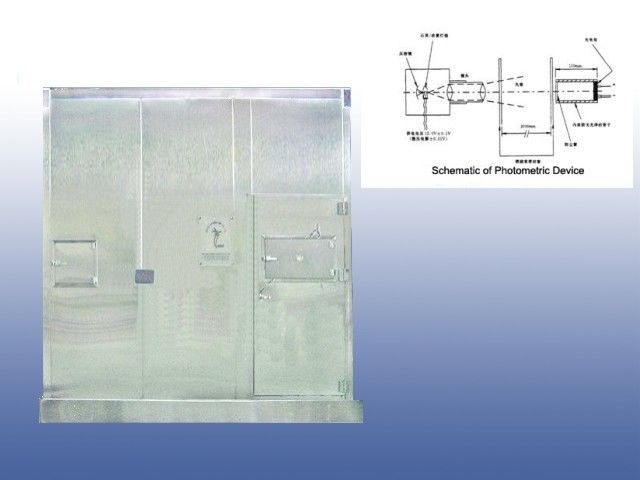

- Photocell Sensor Wires & Cables Smoke Density Test RoomApplication
Applies to check the size quantity of producing smoke of cables or optical fiber under prescriptive fire source.
StandardsAccording to IEC61034-1997, GA306.1-2007, GA306.2-2007.
Technical parametersBurning room size W3000*D3000*H3000mm (27m3), made of stainless steel Standard fire source 1.00L±0.01L alcohol Illuminant nominal power 100w, nominal voltage:DC12v±0.01V Sensor photocell, load resistance≤100Ω Measurement range 0～100% Alcohol dish bottom: 210mm×110mm；top:240mm×140mm；height:80mm Desktop fan Rotating shaft is 200mm～300mm from found, 500mm±50mm from wall. Fan blades size of 300mm ± 60mm, wind speed:7～15 m3/min Min size 100mm×100mm,height: 2150mm
