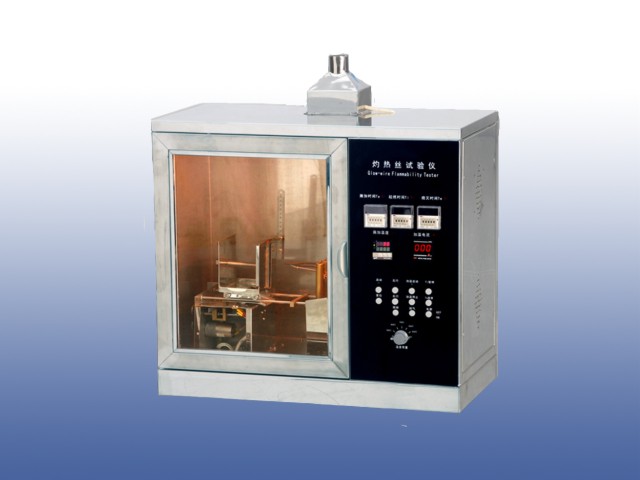

  • SL-7608 Series Glow-wire Tester

  • detailed description

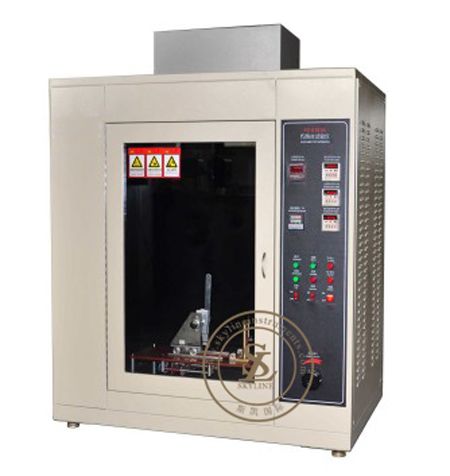

  • SL-7608 Series Glow-Wire Tester
    According to IEC60695-2-10~13, GB/T5169.10~13:2006, UL746A, IEC829, DIN695, VDE0471etc.
     1.The flaming chamber and control part of the integrated design, convenient installation and operation.
    2.The shell of chamber and main parts made of stainless steel, which resistant smoke and withstand the rust of gas
    3.SCR automatic control system to automatically adjust the current to achieve the purpose of control the precise of temperature;
    4.Time and temperature display by digital, convenient for observation and records, stabilization and reliable for use.
    Technical parameters
    Special of test chamber 0.5 CBN (W1000 * D600 * H1260mm)
    Temperature range 500~1000°C, can be adjust and digital displayer.
    Temperature error ±10°C (500~750°C) and ±15°C(750~1000°C), the accuracy class of ±0.5.
    Temperature sensor K-type thermocouple which size is Φ0.5, from oversea.
    Pressure to specimen 0.8N~1.2N, and the depth of press must not less than 7mm
    Timer 0~99min 99s, can be adjust in range
    There are 3 timer for this machine, respectively BURNING TIMER (Ta), normal setting it of 30s as standards,Duration burning timer (Ti) and flame die timer.
    Time error ±1s
    Special layer Smooth wooden board (thickness is 10mm) with a layer wrapping tissue (12g/m2~30gm2) on the board, and the position at a distance of 200± 5mm
    Simple operation, the measuring temperature system is stabilization and reliable, auto temperature compensation.
    Power supply 220V/AC±10%, 50Hz
    SL-7608 Series Glow-wire Tester IEC60695-2-10~13, GB/T5169
    Note: can be according to customer’s request for design the displayer by Touch Screen or LCD.
