  • Site:Home > Mobile Phone Testing Equipment > SL-M006 Mobile Phone Drop Test Machine
  • Product Images

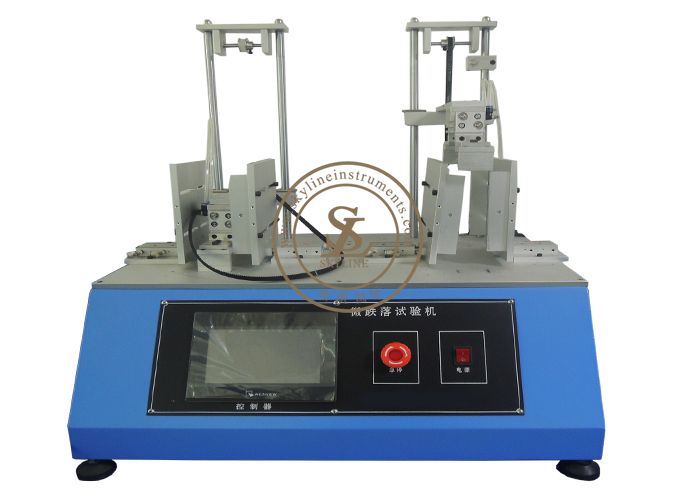

  • SL-M006 Mobile Phone Drop Test Machine

    SL-M006 Mobile Phone Drop Test Machine

    SL-M006 Mobile Phone Drop Test Machine

  • detailed description
  • Mobile Phone Drop Test Machine


    Application

    It is suitable for mobile telephone, telephone receiver, handle
    intercom, MP3, CD, electronic dictionary, all small electronic consumer products in fall testing repeat.


    Technical parameters

     Test station  2pcs
     Allow specimen weight    2kg(max)
     Height of drop  30~150mm
     The range of test speed   6~20times/min
     PLC controller and touch screen  1sets
     Machine size   W420*H950*D370mm
     The weight of machine  around  40kg
     Air supply  ≥0.5Mpa
     Power AC  220V or designation


    Major dispositions

    1. Touch screen: 1pcs PLC 1 pcs
    2. Up and down the cylinder 1 set

    3. Clamping cylinder promote 2 pcs


    Why is a drop test performed?

    Drop testing is performed in a controlled setting to assess a product and package's ability to withstand differing levels of impact encountered during the shipping and handling process.
