  • Mobile Phone Electronics Battery Drop Tester

    Mobile Phone Electronics Battery Drop Tester

    Mobile Phone Electronics Battery Drop Tester

  • detailed description
  • Drop Test Machine Product



    Product Introduction

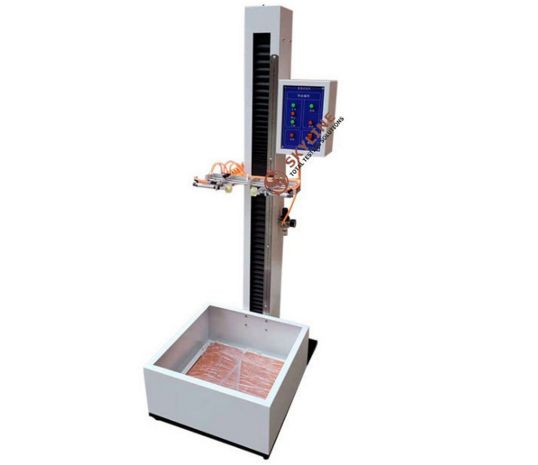

    This machine is suitable for mobile phone (mobile phone), walkie-talkie, electronic dictionary, building intercom, CD/MD/MP3 and other small consumer electronic products and parts free fall test; the machine uses pneumatic structure, will be tested Put it in a special fixture (adjustable stroke), press the down button, the cylinder will be loose, the test piece will be free fall test, the drop height can be adjusted up and down, the altimeter can know the drop height of the test piece, the key components of the machine Reliable performance, a variety of drop floor available.

    Standards
    IEC62133,
     UN38.3, QC/T743-201X



    Technical parameters

    Maximum weight of test piece  2kg±100g
     Drop height  400 ~ 1500mm (adjustable)

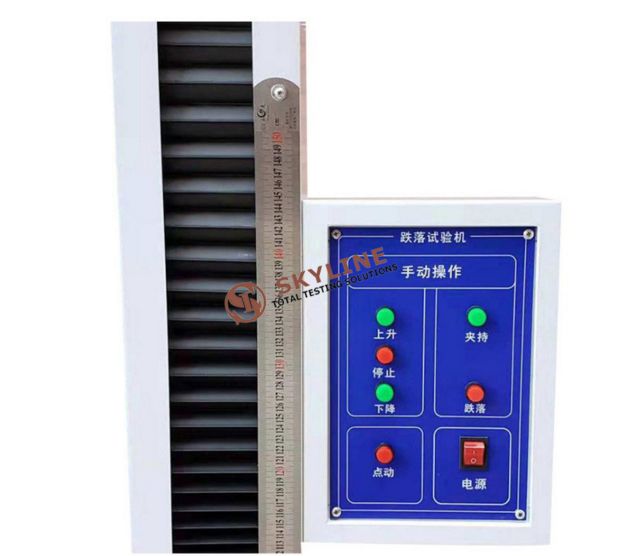

     Drop height scale  accuracy 1mm
     Clamping method  pneumatic clamp
     Falling floor media  acrylic plate, stainless steel plate (customer-supplied)
     The drop method  free fall
     The bottom plate size  560x410mm

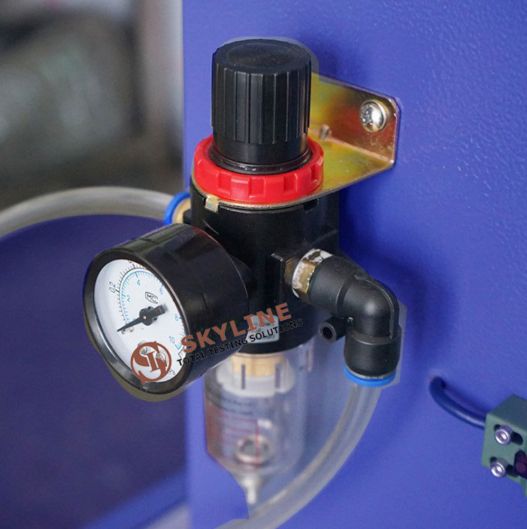

     The use of air pressure  0.4 MPa
     Machine size  700x900x1650mm
     Weight  80kg
     Power Supply  1 ∮, 220V, 3A
