  • Site:Home > Mobile Phone Testing Equipment > SL-M008 Mobile Phone Drop Tester
  • Product Images
  • SL-M008 Mobile Phone Drop Tester

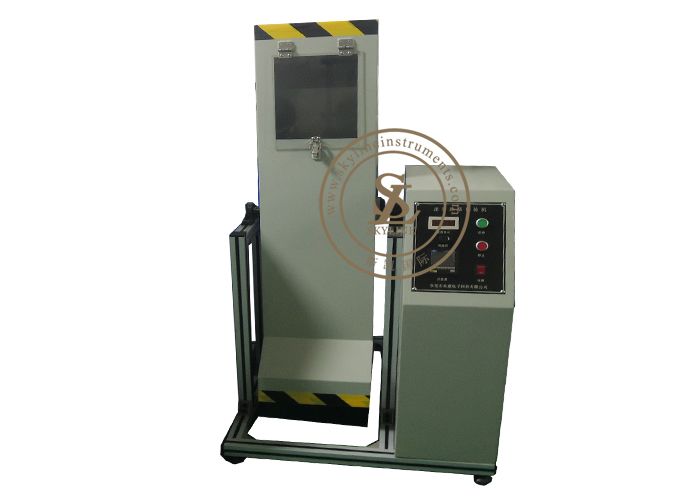

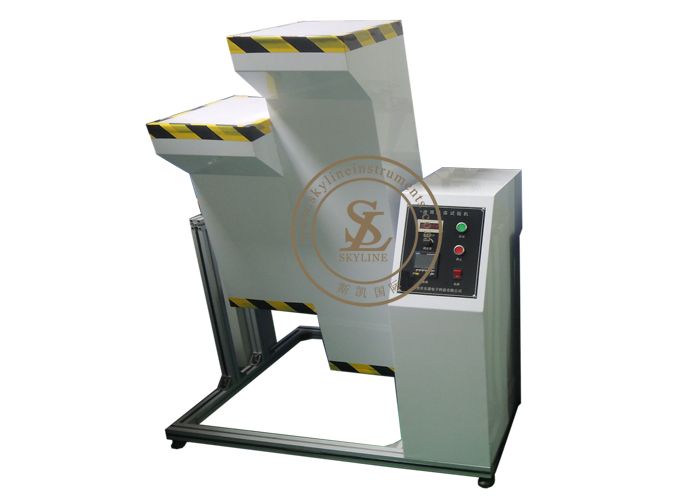

    SL-M008 Mobile Phone Drop Tester

    SL-M008 Mobile Phone Drop Tester

  • detailed description
  • Mobile Phone Drop Tester


    Application

    Apply for mobile, phone earphone, interphone, MP3, CD, electronic dictionary, and the other electronic devices or parts. For checking the device quality after N times free dropping off from a stated height and different side, corner and face.


    Technical parameters

     Multi-angle dropping fixture  0°, 45°, 90°
     Dropping height indicator Digital display,  1mm Min
     Effective dropping height   300~1800mm (optional 2000mm)
     Max tested weight  2Kg
     Dropping plate  Steel plate, cement floor, wooden plate
     Dropping area   500x600mm
     Air pressure   ≥0.5MPa
     Dimension (WxDxH)  800x900x2200mm
     Main unit weight  245Kg
     Power Supply AC220V 50Hz 5A or specified by user

    What does a drop tester do?
    Drop testers allow us to know how vertical and rotational impacts can affect the integrity of the packaging and the products. The information obtained by the innDrop family will help to design a suitable packing to protect the goods during the distribution cycle.
