  • Site:Home > Mobile Phone Testing Equipment > SL-M004 Mobile Phone Abrasion Testing Equipment
  • Product Images

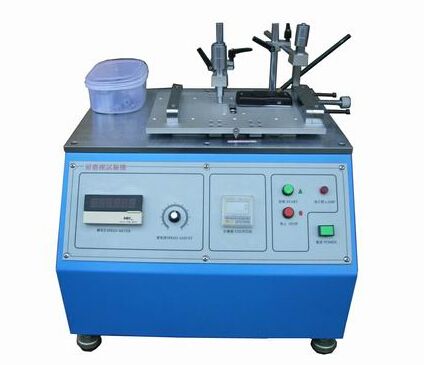

  • SL-M004 Mobile Phone Abrasion Testing Equipment

  • detailed description
  • Mobile Phone Abrasion Testing Equipment


    Use

    This machine is mainly used for resistance to alcohol soluble test of spraying products such as: buttons, plastic shell, coating surface, it also has a rubber friction testing function.


    Technical parameters

    Number of test sample

     4(1 alcohol stick,3 rubber sticks)

     Saddle weights

     500g or designation(net weight of friction stick:150g)

     Test distance

     25-60mm

     Working voltage

     220VAC 50HZ

     Drive mode

     Motor-driven

     Alarm function

     Alarm and the machine halt as soon as the count value arrive

     Test speed

     10-90times/min

     5-60 times/min

     Alarm mode

     Light

     Acousto-optic

     Control

     A,Potentiometer adjust working speed

     B,Working displacement manual operation

     C,6 LED count value displayed, 1~~999999 set freely, power down

    memory

     A,Working speed digital set
     B,Working displacement digital set
     C,8 LED count value displayed, 1~~999999 set freely

     Display method

     6 LED

     HMI



    Which equipment is used for abrasion test?

    oscillating sand tester is used to measure the relative abrasion resistance of a material to surface abrasion and / or marring.
