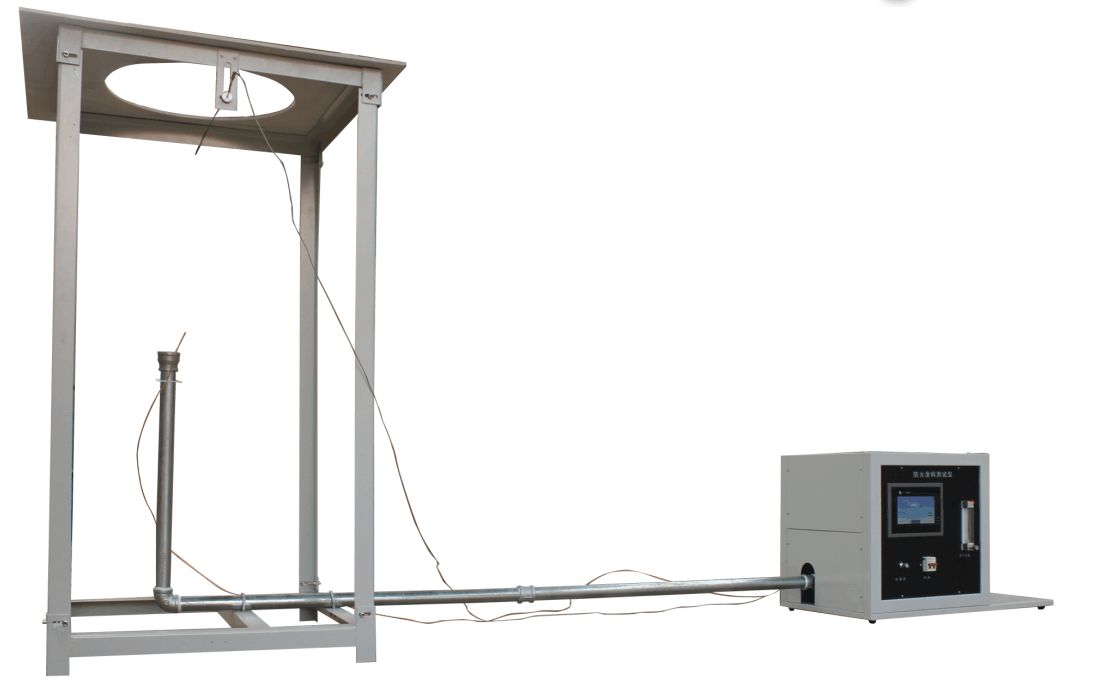

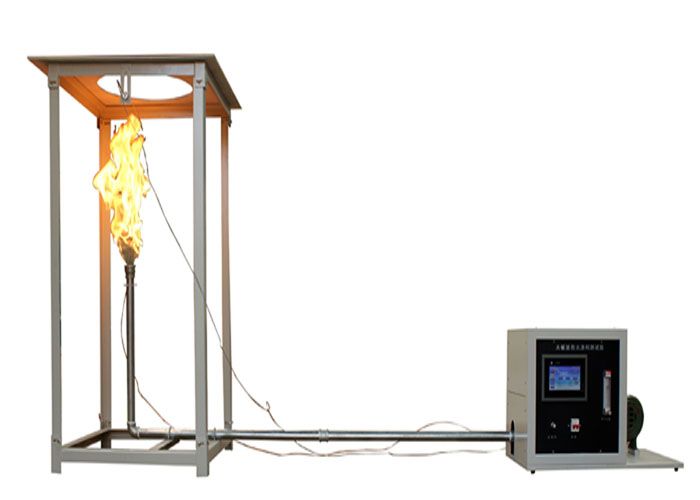

Fireproof-Coating-Tester (Method of large plate)

Technical indicators

1.PLC+NA view professional software, touch screen control, easy operation

2. Voltage and Power: 220V±10%. 50Hz,300W

3. Working Environment: indoor , no forced ventilation

4. Air Volume of Blower: (1-5) m³/min

5. Armored Thermocouple: Outer diameter ≤3mm, Wire diameter 0.5mm , Accuracy ≥II level, Range 1300℃

6. Timer Error ≤ 1s/h

7. Backfire five-way thermocouple temperature,alarm when it comes to 220℃

8.Environmental Temperature: -5℃-30℃

9. Relative Humidity: ≤85%

10. Gas Source: Liquefied petroleum gas

11. Instrument Dimensions: Test plate bracket   760mm*760mm*1500mm

                                                 Control box      800mm*500mm*500mm

12. Specimen Size: 900mm*900mm*5mm +0.2mm Plywood of five layers of first level

13. Time of Automatic Controlling——Temperature Rise and Record

14.Alarm when temperature of time back fire comes 220℃
